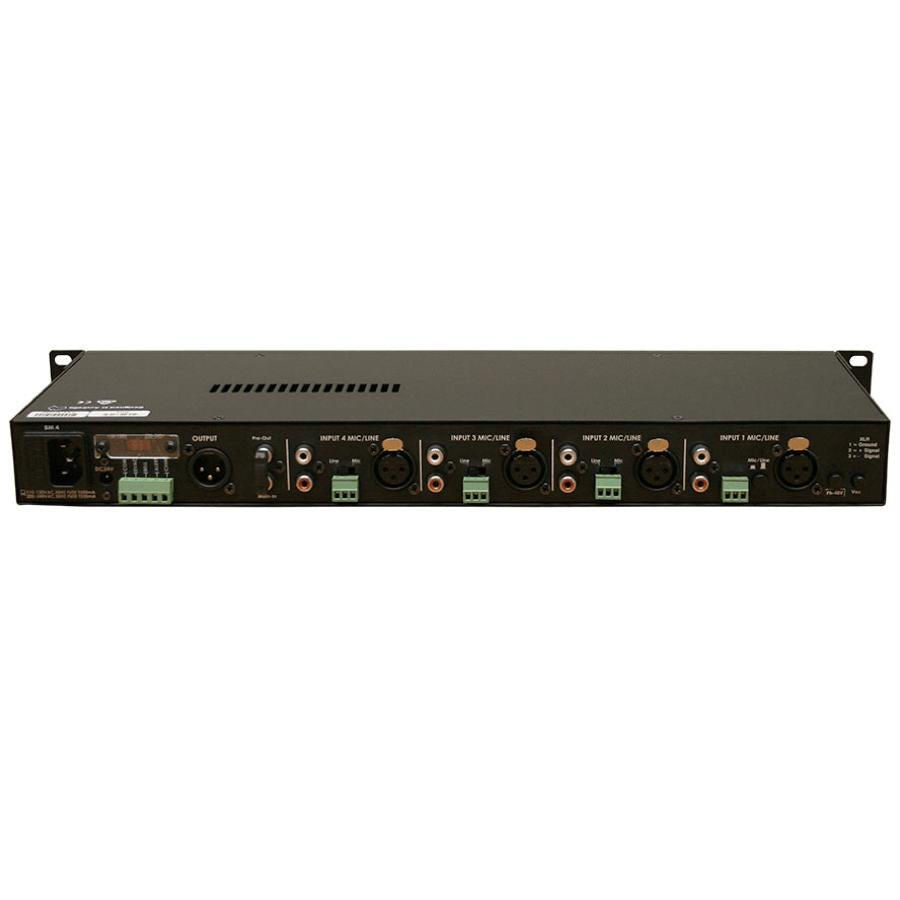

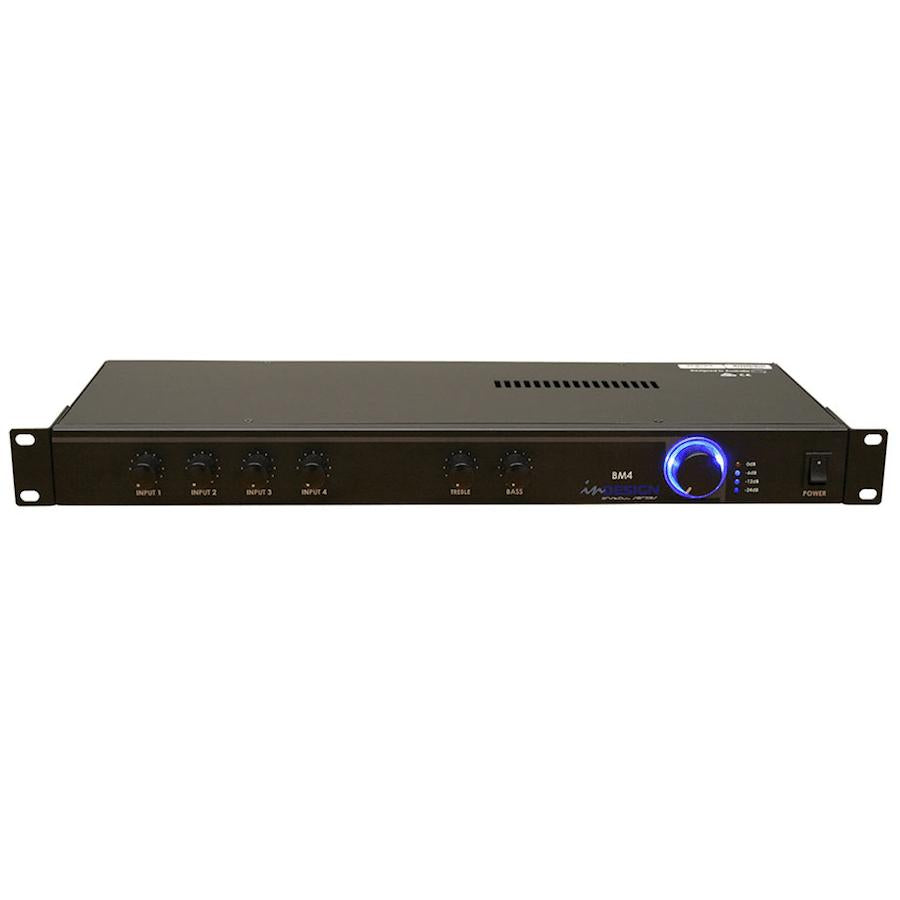

inDESIGN BM4 4 Channel Strip Mixer/Pre-amplifier

inDESIGN

IN-BM4

The inDESIGN BM 4 is a high quality mixer for commercial and industrial audio applications.

The BM 4 features 4 Mic/line inputs with microphone input 1 featuring a mute so that a Microphone on this channel will mute all other inputs, useful for paging announcements. The BM 4 provides a mono output. There are 4 alarm triggers: CHIME, ALERT, BELL and EVAC, connected via external mounted screw terminals.

The mixer is part of inDESIGN’s Install Series, which also includes mixer amplifiers and power amplifiers. These units provide excellent features and value.

Warranty: 5 Years

Mic Inputs

  • Connectors (Mic/Line): Euro Block / RCA
  • Impedance (Mic/Line): 1kΩ / 13.6kΩ
  • Gain (Mic/Line): 20dB to 50dB / 0dB to 20dB
  • Max Input Level (Mic/Line): -28dBu / +10dBu
  • Frequency Response: 20Hz – 20kHz
  • S/N: -86dBu
  • THD+N: 0.3% (20Hz – 20kHz, +4dBu)
  • Phantom Power: 48V
  • Tone Frequency/Control Range: 100Hz / 10kHz


Balanced Outputs

  • Output Impedance (Mic/Line): 51.1Ω / 150Ω
  • Max. Output (Mic/Line): -16dBu / +24dBu
  • S/N: 90dB
  • THD+N: 0.01% (20Hz – 20kHz, +4dBu)



  • Crosstalk: -75dB @ 1kHz
  • Mains Voltage: 240 VAC, 50/60Hz, 10 Watts


Unit

  • Construction: All Steel
  • Size: 4.4cm x 48.3cm x 16cm
  • Weight: 1.8kg



Note: 0 dBu = 0.775 Vrms

To download the BM4 User Manual please click here.
