Allen & Heath AR2412 24 XLR Input and 12 XLR Output Audio Rack/Stage Box for Qu

Allen & Heath

AH-AR2412

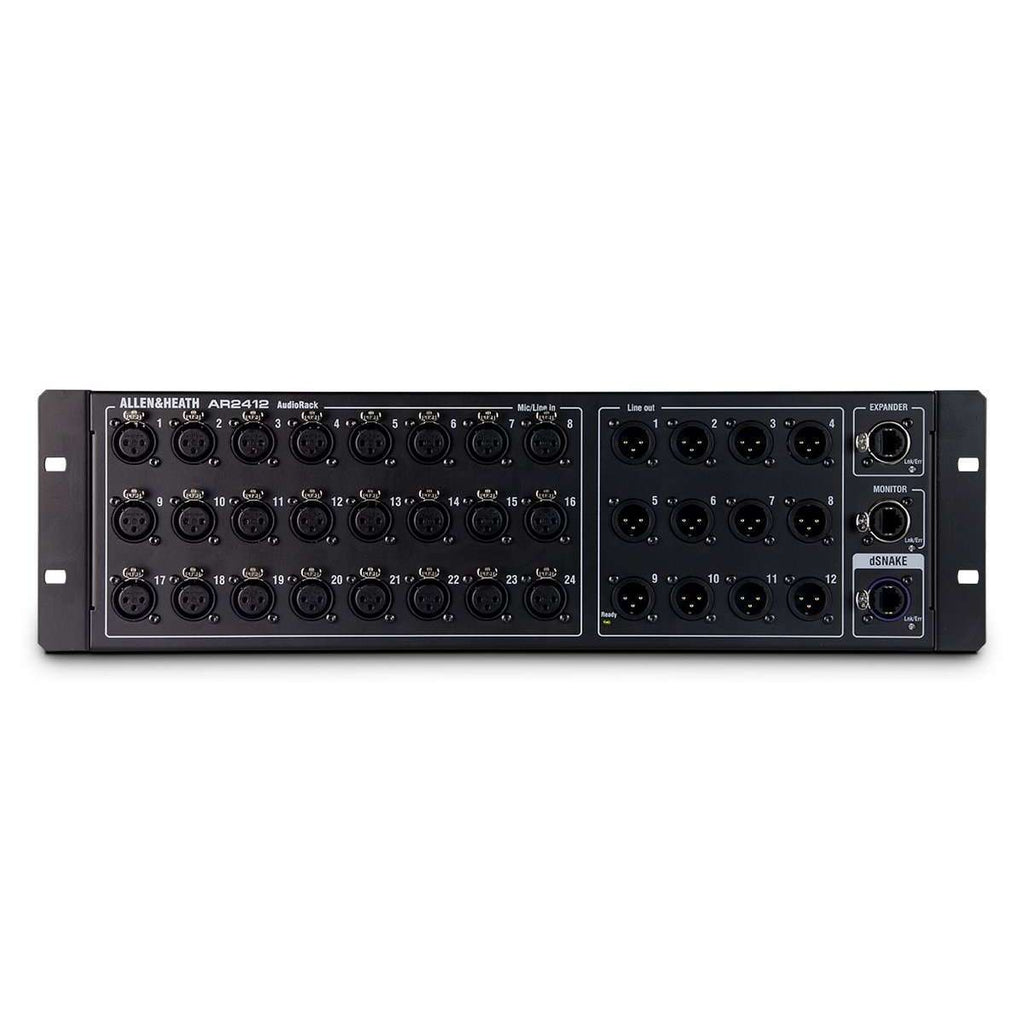

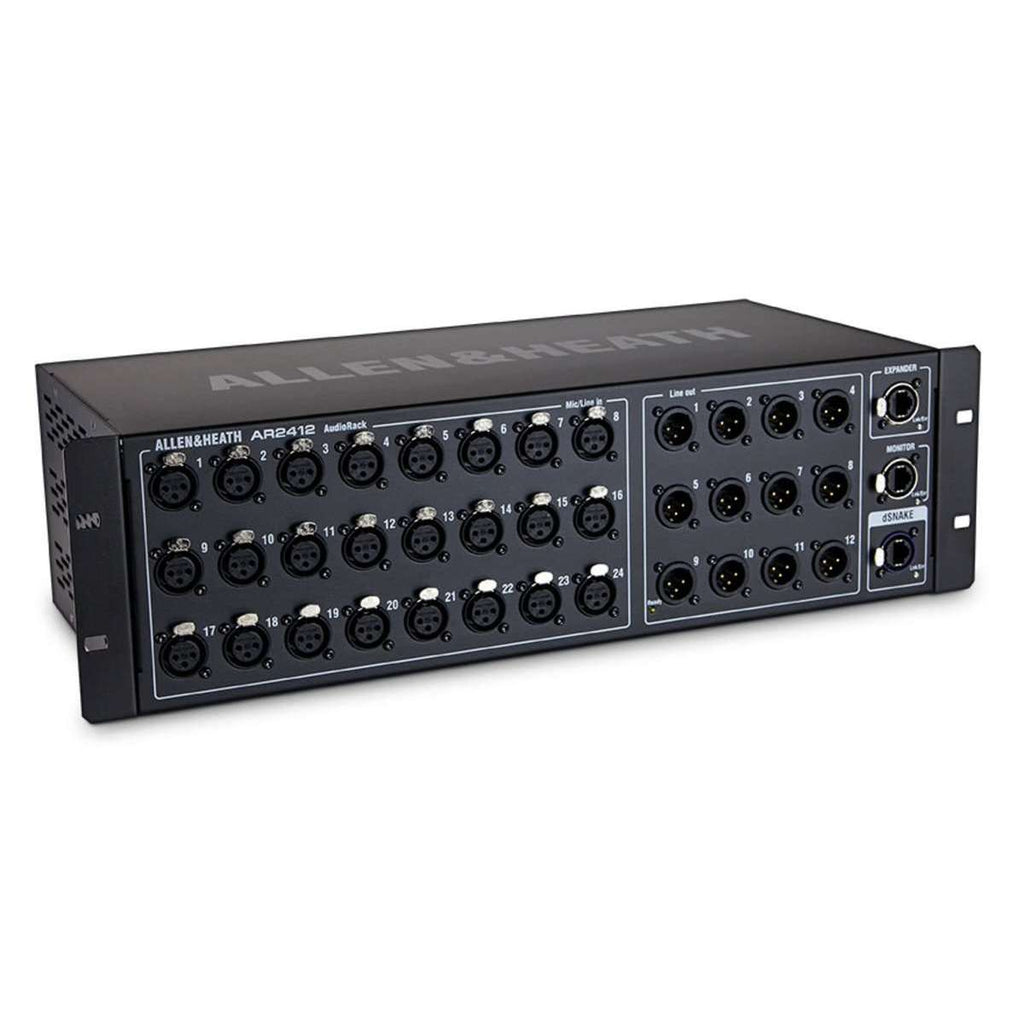

AR2412 is a 24 XLR input, 12 XLR output AudioRack. Adding an AR2412 to your Qu system lets you position some or all of your I/O up to 120m from the Qu mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol. dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable. AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 AudioRack (Qu-24 only).

The AR2412 is simply an audio interface. It cannot be used by itself. It must connect to the GLD or Qu mixer which is where the audio is processed.

dSnake

Qu mixers are self-contained, so if you’ve already got the analogue cables you’re good to go. If you’re thinking of trading in the copper multicore for a Cat5 digital snake, Qu’s dSNAKE port has you future-proofed, allowing connection to a combination of AR2412, AR84 or portable AB168 AudioRacks.

dSNAKE is Allen & Heaths proprietary networking solution, boasting a transport latency of only 105us over cable runs of up to 120m / 390’. So if you’re mixing FoH you can place your I/O on the stage and run a single Cat5 cable back to the Qu mixer in the mix position.

Warranty: 12 Months

To download the AR2412 Guide please click here.

For further information including specifications from the Allen & Heath site please click here.
