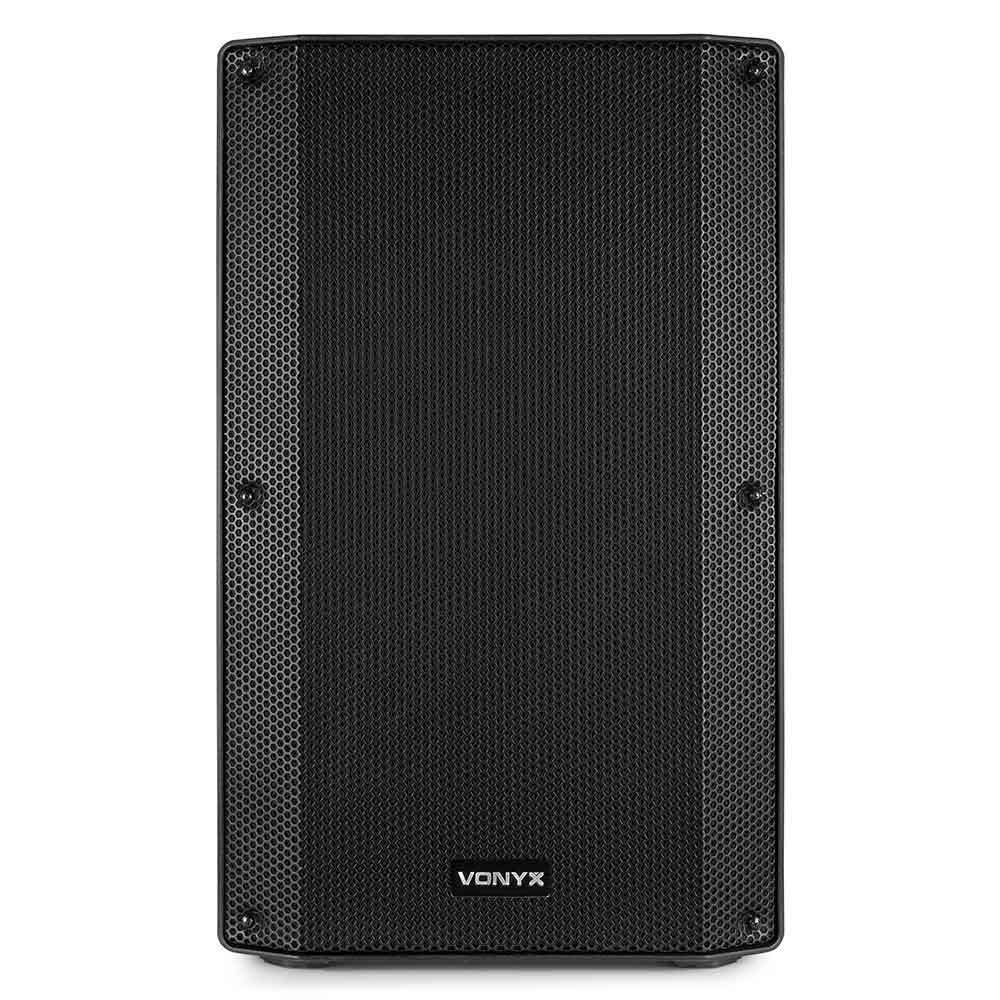

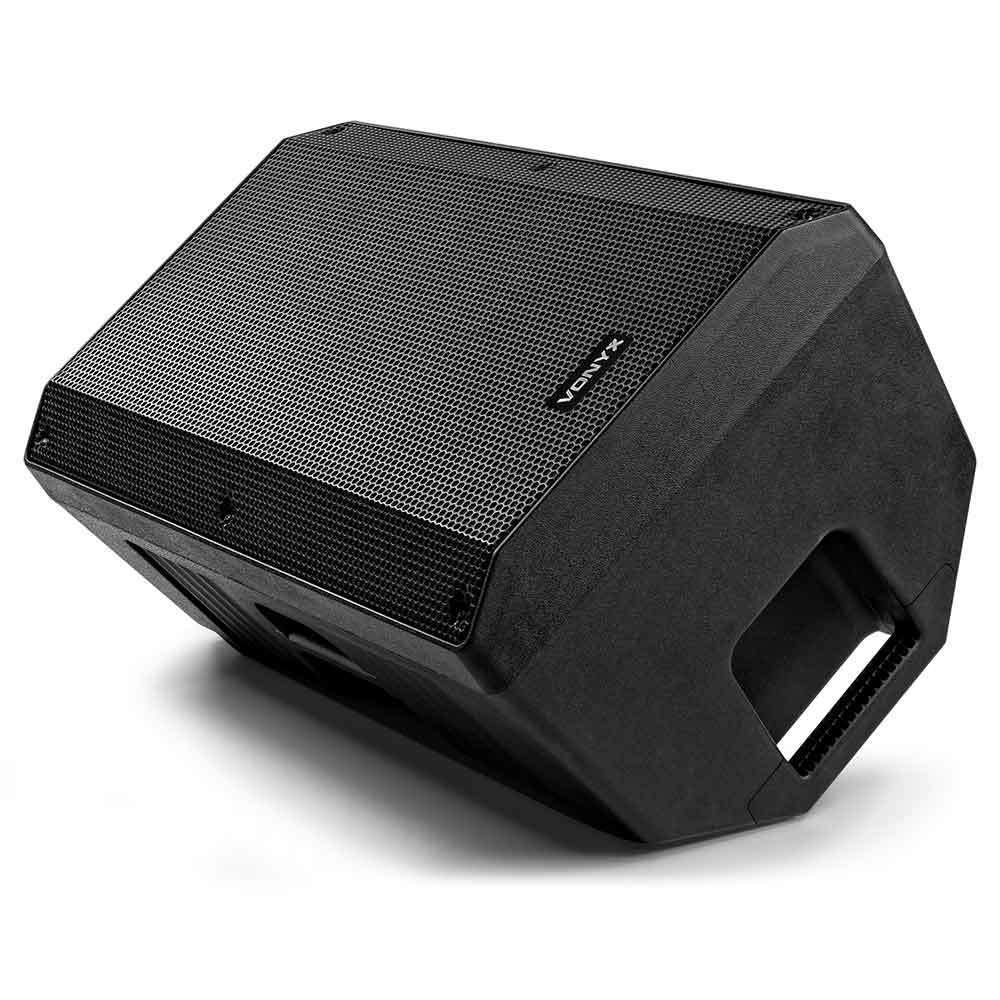

Vonyx VSA12BT Bi-Amplified 400watt RMS 12″ Inch Active Speaker with BT/MP3



The Vonyx VSA12BT is a 12″ 800W (400watts RMS) active speaker with Bluetooth. It is part of the VSA series that consists of a range of high-power speakers. It features 2x built-in amplifiers (LF amplifier and the HF amplifier) for great performance. The built-in amplifier unit is equipped with a BT receiver and USB port for MP3 playback.

The VSA12BT also includes a bright LCD display with ID3 Tag. This series has been designed in a sturdy ABS construction both to handle the power and is still lightweight enough for mobile use.

The perfect speaker for any DJ or live performer but also suitable for monitor use or club installation.

Rear Panel Functionality

On the rare panels of VSA12BT are 2x Mic inputs. You can use either a 6.3mm Jack balanced or an XLR balanced cabled microphone. Each input has a dedicated Mic Level knob. Additionally, the Line Input is also present which uses an XLR 3-pin connector for a Line Signal Input. A dedicated Line Level knob is also present for controlling volume on this Line Level input. Furthermore, 2x RCA connectors are available so you can use an RCA line signal input instead. Also included is an Auxiliary 3.5mm input connector.

The Line out on the VSA12BT uses an XLR 3-pin connector for a Line Signal Output. The rear panel also consists of a Master Volume knob as well as a Treble and Bass knob for essential EQ functionality. For extra versatility, each speaker includes a 35mm pole socket making it suitable for stand mounting applications.

Media player

As mentioned the VSA12BT includes an MP3 media player. The dedicated panel for the media player includes a USB SLOT so you can play media files from a USB device by connecting the device to this slot. The display shows multiple forms of information, for example, current MODE, elapsed time, and MP3 ID3 information. The MODE BUTTON allows you to change modes between playing USB, MP3, and BT.

Both PLAY/PAUSE BUTTONs are present so you can control the tracks directly from the VSA12BT. A FOLDER BUTTON allows you to enter the folder details. The PREVIOUS BUTTON and NEXT BUTTON allow for switching between tracks. Furthermore, if you HOLD on any of these buttons you can scan the track selected forwards and backward.

A handy remote control has also been included so you can control all the functions of the speaker with ease.

Finally, the VSA12BT includes a Bluetooth function where you can connect directly to your smart devices such as a phone or tablet. Just press the BT function in the MODE SECTION and stream music wirelessly through this versatile 10″ Inch Active Speaker.

In summary, VSA12BT features:

  • 2x built-in amplifiers
  • BT receiver and USB port for MP3 playback
  • Lightweight, Sturdy Construction

Warranty: 12 Months

  • 800W Bi-amplified 12″ speaker (400watts RMS)
  • Built-in Multimedia-player (USB)
  • Digital LCD display with ID3 Tag
  • Using BT wireless technology for audio streaming
  • Built-in Equalizer with 5-band control
  • Guitar, Line and microphone inputs
  • Built-in 2-way active crossover
  • Angled design for use as a stage monitor
  • 35mm socket for tripod or pole-mounting
  • Including remote control

Supplied features: Speaker pole mount

Input connections: 3.5mm Jack, 6.3mm Jack, RCA, USB, XLR (3-pin)

Output connections: XLR (3-pin)

Speaker type: Amplified

Amplifier type: Class AB

Output power: Max: 800W

Output power: 400W

Frequency response: 40Hz – 20.000Hz

Diameter tweeter: 1″

Tweeter Type: High Compression Driver

Diameter woofer: 12″

Magnet type: Ferrite

Impedance: 4 Ohm

SPL max: 125dB

Power supply: 220-240VAC 50Hz

Dimensions (L x W x H): 315 x 380 x 595mm

Weight: 12.90 kg
