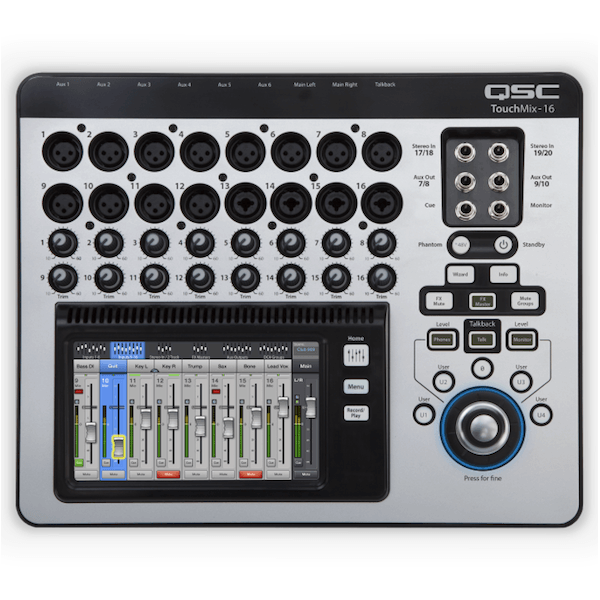

QSC TouchMix-16 16-Channel Compact Digital Mixer



QSC TouchMix compact digital mixers are designed for musicians, production professionals and live performance venues that need the power and capability of a large “concert” mixing console in a compact, affordable and easy to use form. TouchMix-8 and TouchMix-16 mixers have the functionality to satisfy demanding professionals combined with a range of features and functions that help the less experienced user achieve quality results.

The QSC TouchMix Series represents a breakthrough in innovation and digital mixer design - the result of a remarkable collaboration between QSC and industry icons Greg Mackie and Peter Watts (M&W Pro Audio Ltd.) TouchMix not only resets the bar for performance and value, but also redefines the user experience for both professionals and novices alike.

Professional Results Made Easy

  • Simple Mode makes getting great results easy and fast (similar to the “Auto” function on a DSLR camera
  • Advanced Mode gives pro users total control over all mixer parameters
  • Wizards and preset libraries created specifically for live sound reinforcement assist the user with channel setup, effects selection and more

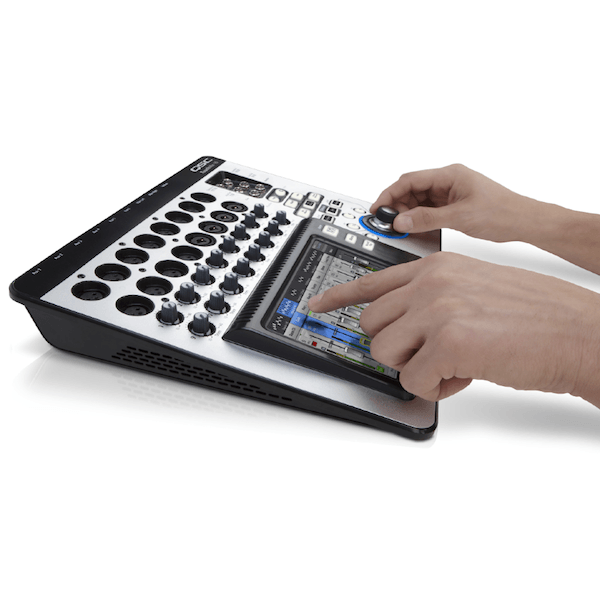

  • Built-in color touchscreen combined with hardware controls for fast and intuitive operation

“Big Mixer” Features and Specifications

  • 4-band full parametric EQ and variable high-pass filter on all input channels.
  • Gate and compressor on all input channels
  • Four premium stereo DSP’s with a full selection of professional digital effects
  • 1/3 octave graphic EQ, notch filters, limiters and delay on main and aux. outputs, DCA’s and mute groups High Quality microphone preamps Channel-selectable phantom power
  • Multiple monitor mixes including ability to drive in-ears directly
  • Multitrack direct to disk recording/playback via external USB hard drive (not included.) No computer required.

TouchMix delivers all the processing power and features that a professional live sound engineer could want.

Compact and Complete

  • Approximately the size and weight of a small laptop computer
  • Operation via internal color touch-screen and rotary dial, mobile device or both simultaneously
  • USB Wi-Fi adapter included. No additional network hardware required for remote control
  • Includes padded carrying case for protection and easy transport

Warranty: 3 Years

    • 20 total inputs: 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)
    • Dedicated talkback mic input
    • Stereo Main L/R outputs (XLR)
    • Ample monitor outputs (eight total) with 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes.
      • The 2 stereo aux outputs can drive wired in-ear monitors (IEM) directly.
      • Mono auxiliaries may be linked for stereo use.
    • Superb sound quality
      • Class-A microphone pre-amps
      • 32-bit floating point processing
      • 24-bit AD & DA convertors
    • Input channels are fully-featured:
      • Four-band full parametric EQ
      • Variable high-cut and low-cut filters
      • Gate
      • Compressor (with de-esser)
    • Main and auxiliary outputs feature:
      • 1/3-octave graphic EQ (four-band parametric EQ on stereo auxiliaries)
      • Limiter
      • Delay
      • Notch filters
    • Four professional quality stereo DSP effects. Choose from:
      • Two types of reverb
      • Mono delay
      • Stereo delay
      • Chorus
      • Pitch-change
    • A pitch correct processor is assignable to any input channel.
    • Eight DCA and eight mute groups.
    • Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
    • Great results and easy to use
      • Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
      • Wizards assist with input gain adjustment and effects selection and routing.
      • On board Info system gives you instant access to the user manual.
    • Save your own channel presets and complete mixer scenes to internal memory or USB device.
    • Capturing live performance to multi-track has never been easier. Record 22 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.
    • Remote control via iPad®.
    • USB Wi-Fi interface and carrying case are included.
