Palmer PAN 04 2 Channel Passive DI Box

Palmer

PAN04

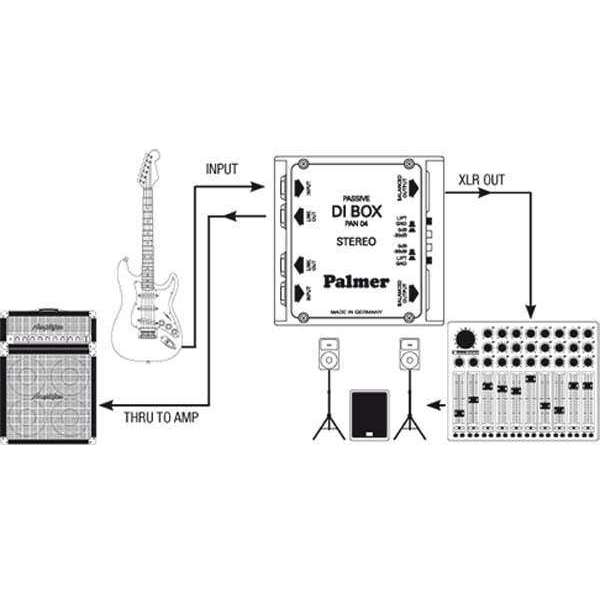

The Palmer Pan04 is a 2-channel passive DI box for line and loudspeaker levels. PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This “stereo” configuration makes it ideally suited for use with certain keyboards and devices which have several outputs. Jack input with parallel “THRU” output, transformer balanced XLR output. The attenuable input sensitivity can handle both line level and speaker level signals.

Warranty: 5 Years

  • No. of channels: 2
  • Passive/Active: Passive
  • Transformer balanced: Yes
  • Attenuator: -30 dB
  • Input/Output Gain: -20 dB
  • Ground lift switch: Yes
  • Max Input Level: +54 dBu
  • Max Output Level: +4 dBu
  • Frequency Range 2K Source Imp. -1dB: 10 Hz – 40 kHz
  • Input Impedance 60Hz: 60 kΩ
  • Nom. Output Impedance: 600 Ω
  • Housing: Steel
  • Dimension: 110 x 110 x 45 mm
  • Weight:  0.419 kg
