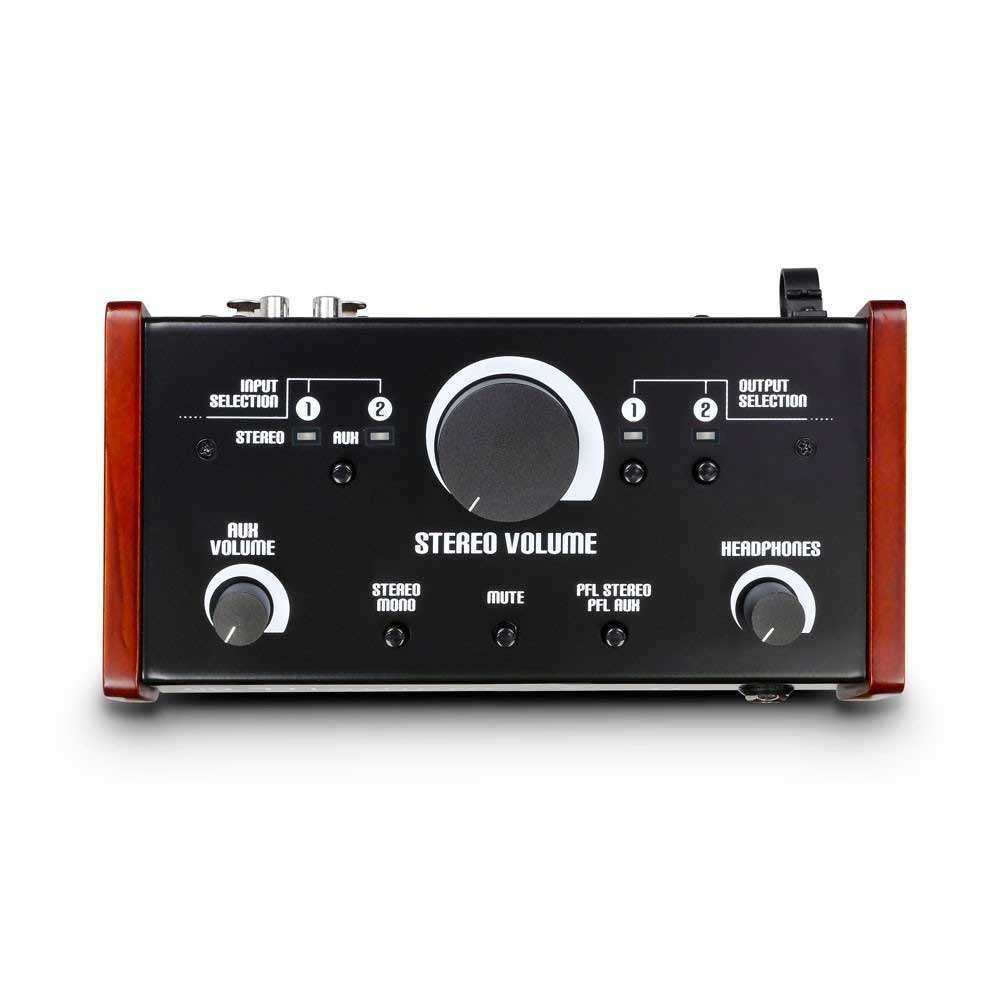

Palmer Monicon L Passive Monitor Controller



The Palmer Monicon L gives you a precise, analog passive monitor controller. Connecting the Monicon L between your computer or audio interface and your active monitor speakers. The switch on the Monicon L is completely passive and distortion free. While the LED displays and built-in headphone amplifier are both powered via the included power supply.

Additionally, symmetric combo sockets serve as stereo inputs. Featuring both RCA sockets and also a 3.5mm stereo jack. The Monicon L also offers outputs for two monitor pairs as well as a mono summed output via XLR sockets. The stereo or AUX input can be selected alternately, the two outputs individually and together. On top of that, the Monicon L is equipped with mono, mute, and PFL switches. As well as a 6.35mm headphone output, separate AUX and headphone controllers for added convenience.

Warranty: 5 Years

  • All-passive volume control circuit
  • Stereo and AUX inputs
  • Dual outputs
  • Additional mono output
  • Balanced and unbalanced connection
  • Integrated high quality headphone amplifier
  • Mono, mute and PFL switches
  • Stereo volume, AUX and headphone level controls
  • Elegant design with solid wood side panels
  • Built to last

Channels: 2

Inputs: 2

Input connectors: 3.5 mm TRS , RCA , XLR

Input type: balanced/unbalanced (depending on TS/TRS connection)

Max. input level: 20 dBu

Input impedance: (balanced) 10k Ohm(s) , (unbalanced) 5k Ohm(s)

Outputs: 3

Output connectors: XLR

Output type balanced/unbalanced (depending on TS/TRS connection)

Max. output level: 20 dBu

Output impedance: 600 Ohm(s)

Frequency response: 10 – 40000 Hz

Total Harmonic Distortion (THD): 0.001 %

Max. attenuation (Attenuator + Mute) 112 dB , (Attenuator) 85 dB

Controls: attenuation , input selector , mono , mute , output selector , PFL source

Cabinet material: sheet steel , wood

Cabinet surface: Powder coated

Width: 218 mm

Height: 77 mm

Depth: 100 mm

Weight: 1.14 kg
