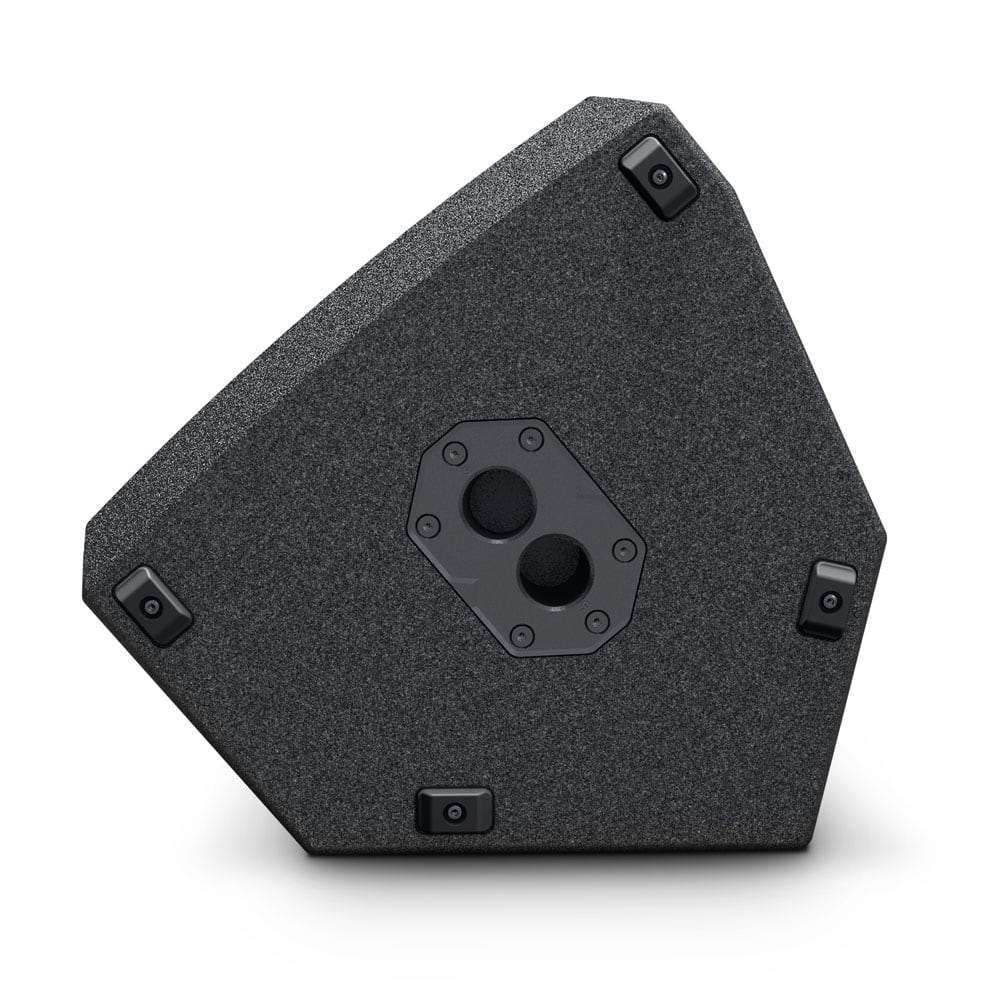

LD Systems Stinger 10 A G3 10″ Powered Speaker

The LD Systems Stinger 10 A G3 powered speaker is engineered for rock-solid reliability day in, day out. With its multi-purpose bass reflex construction and carefully contoured, user-friendly presets it is equally suitable for fullrange, satellite or floor monitor applications.

The Stinger10 A G3 is powered by highly-efficient Class D amplification with a hefty 300 watts RMS output. It drives a custom-designed 10” woofer and BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modelling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. The Stinger 10A G3 also incorporates LD Systems’ proprietary DynX® DSP technology to ensure top-level performance with maximum clarity and punch at all times. Processing includes crossover and multi-band limiter functions for accurate time alignment and pristine, distortion-free audio.

Designed to be a real workhorse throughout, the enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the Stinger® 10 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.

Warranty: 12 Months

• High performance 10″ powered speaker
• Full range 2-way design
• Onboard 300W (RMS) Class-D amplifier
• On button mode selection to suit various applications
• Strong wooden enclosure with Polyurea coating
• Integrated multi-band limiter
• Great for FOH or foldback applications
• Designed and engineered in Germany

Product number: LDEB102AG3

Product type: PA loudspeaker

Type: active

Low/mid driver: 10″ (254mm)

Woofer voice coil: 2″

Horn: BEM optimized CD Horn

HF driver: 1″ BMS

HF driver voice coil: 1″

Amplifier: Class D

Inputs: 2x XLR / Jack combo

Outputs: 1x XLR

Dispersion (H x V): 90 x 50°

RMS: 300W

Peak power: 600W

Frequency response: 65Hz to 20kHz

Max. SPL: 127dB (peak)

Protection circuits: over voltage, Multiband limiter, thermal overload, over-current

Input sensitivity: -9dBu

Indicators: mode, protect (protection circuit engaged), signal, Mic, on, limit

Operating voltage: 240V / 50Hz

Operating Temperature: 0 – 40°C

Relative humidity: < 80% (non-condensing)

Cabinet material: 12 mm Plywood

Dimensions: 325 x 527 x 308mm

Weight: 12.7 kg
