JTS UF-20 Dual Channel Combination Handheld and Beltpack Wideband Wireless System (624-694 MHz)

JTS

JP-UF20RB9 + JP-JSS20B9 + JP-UF20TBB9

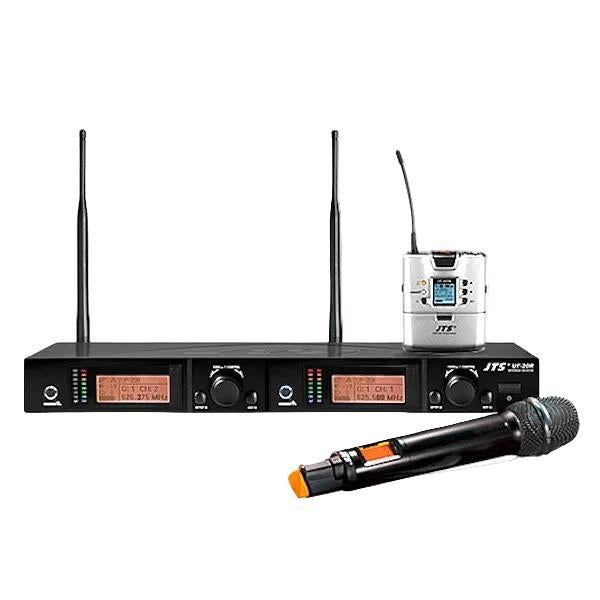

Includes JTS UF-20R Receiver with 1 x UF-20TB Beltpack Transmitter and 1x JSS-20 Handheld Mic Transmitter.

This system operates in the 624-694 MHz range thus ensuring that it will operate well into the future. To check if these frequencies operate in your area please use the ACMA Channel Finder at http://channelfinder.acma.gov.au/.



The latest JTS wireless series with the following great technological features:

  • UHF True diversity technology renders 200-480 meters of operation distance
  • Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
  • Preset 15 groups each of up to 63 compatible channels
  • User programmable 6 groups each of 64 channels
  • Free space scan function
  • JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
  • JTS LCX circuit design technology minimizes companding noise


NEW FEATURES:

  • The Remoset now not only sends the frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.
  • Power / Antenna cascading output provided.
  • RF “NO SIGNAL” alert function.
  • AF “MUTE” alert function.
  • Transmitter “LOW BATTERY” alert function.
  • Built in equalizer



EXTRA TRANSMITTERS AVAILABLE

We also stock as a separate item just the transmitter(s) for this system. For an availability and price please contact us. Please specify the frequency you require (normally can be found the rear of your receiver).

Warranty: 12 Months

UF-20R Receiver Specifications:

Frequency Preparation: PLL Synthesized Control

Frequency Setting: JTS patented obstacles-free RF REMOSET

Carrier Frequency Range: UHF 470~960 MHz Channel

Dual Bandwidth: 60~75MHz Wideband

S / N Ratio: > 108dB (A) T.H.D <0.5% @ 1KHz

Chassis: 1U standard metal chassis

Preset Channels / Group: * From group 1 ~ 15 up to 63 interference-free compatible channels.
* 690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.

Display:LCD

Display Contents: Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch

Sensitivity: 6dBμV, at S / N> 80dB

Receiving Mode: True diversity

Audio Output Level: Maximum 6dBu

Receiving Mode: True diversity

Audio Output Level: Maximum 6dBu AF

Output Impedance: 600Ω

Frequency Response: 50Hz ~ 18kHz, with high-pass filter Squelch Pilot Tone & Noise Mute

Power Supply: 100 ~ 240V or 12V DC

Output Connector: 2 x XLR Balanced Socket
& 2 x Ø6.3mm Unbalanced phone jack

Dimension: 480mm (W) 45mm (H) 260mm (D)

Notes Actual product specifications may vary depending on model and region.

____________________________________________________________________

JSS-20 Handheld Transmitter Specifications:

Frequency Preparation: PLL Synthesized Control Carrier

Frequency Range: UHF 470~960 MHz

Bandwidth: 60~75MHz Wideband

RF Outputs: Low / High

Stability: < ±10KHz

Frequency Deviation: ±48KHz (Peak)

LCD Display: Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust Controls Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Spurious Emissions: <-50 dBC

Audio Frequency Response: 50Hz ~ 18k Hz

Capsule Module: Interchangeable

Battery: AA NiMH x2

Dimensions: 50mm (W) x 253mm (H) x35.5mm (D)

Weight: 350g

Notes: Actual product specifications may vary depending on model and region.



________________________________________________________________________



UF-20TB Beltpack Transmitter Specifications:

Frequency Preparation: PLL Synthesized Control

Carrier Frequency Range: UHF 470~960 MHz

Bandwidth: 60~75MHz Wideband RF

Outputs: Low / High Stability: < ±10KHz

Frequency Deviation: ± 48KHz (Peak)

Chassis: Aluminium alloy LCD Display: Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust Controls: Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Output Connector: 4P Mini XLR

Spurious Emissions: <-50 DBC

Audio Frequency Response: 50Hz ~ 18k Hz

Battery: AA NiMH x2

Dimensions: 62mm (W) x80.3mm (H) x22.6mm (D) Weight: 93g

Notes: Actual product specifications may vary depending on model and region

To download the UF-20 User Manual please click here.
