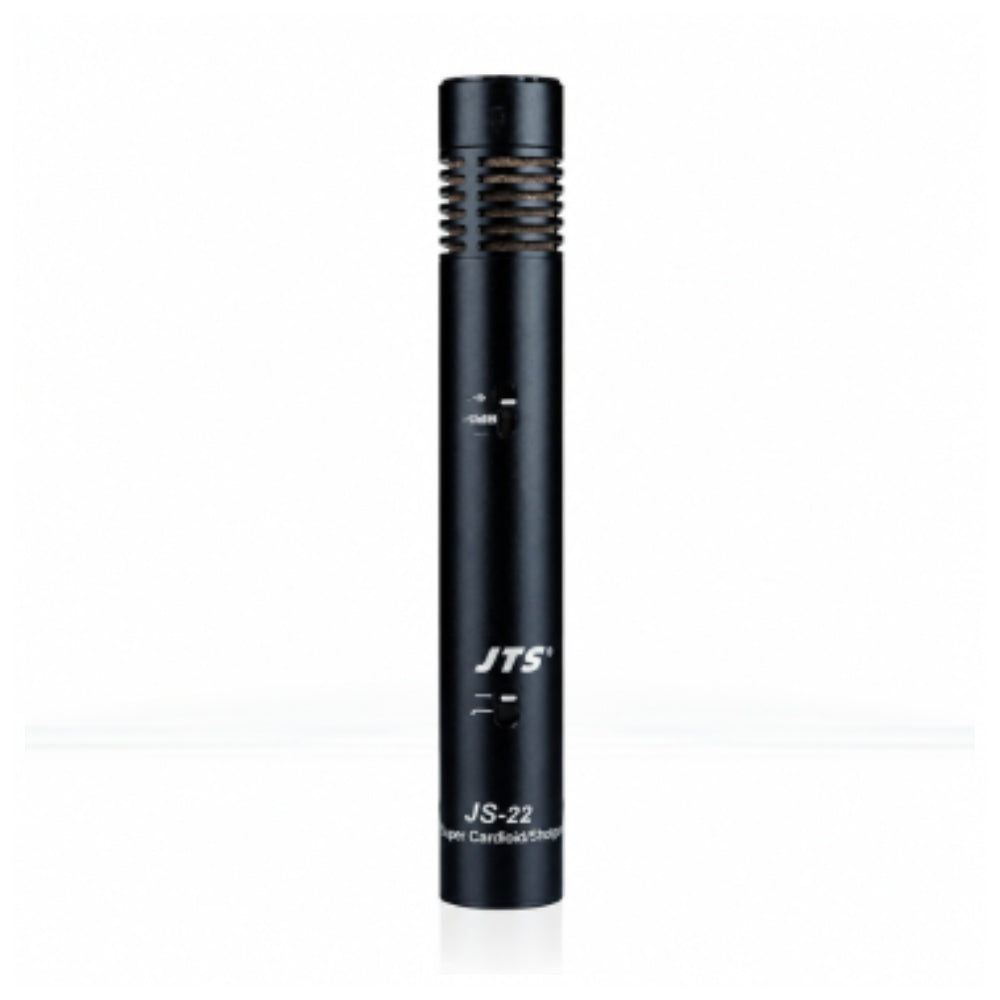

Based on the success of the JTS JS-1 series, JS-22 is designed for instrument miking everything from strings to percussion. The 1/2” golden plated diaphragm is manually assembled by JTS craftsman. The precise designed circuit with a low cut and pad feature provides a flat response. The JS-22 faithfully reproduces all instruments.
Supplied with rugged hard-shell carry case and flexible microphone clip.
Warranty: 12 Months
Mic Frequency Response: 20~20,000 Hz
Sensitivity: -36±3 dB* (15.8mV)
Directional Pattern: Cardioid
Attenuation Switch: -10dB
Low Frequency Roll-off: 80Hz
Impedance: 100Ω Max.
SPL For 1% T.H.D.: 140 dB
Signal To Noise Ratio: 78dB
Power Supply: 36~52VDC phantom power
Current consumption: ≤3mA
Output: XLR-M type (power module)
Dimensions(mm): Ø22.5mm(W) * 150.5mm(H)
To download a Specification Sheet please click here.
