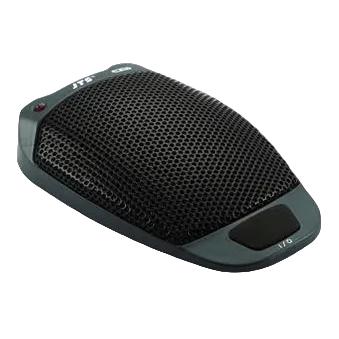

JTS CM-601 Electret Condenser Boundary Microphone

JP-CM601

Description
Specifications
Delivery
Price Match

Description

The CM-601 is designed for conference, house of worship, and theatre applications.
The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.
The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.
Internal shock mount minimises mechanical noise.

Warranty: 12 Months

Specifications

Type: Electret Condenser
Frequency Response: 30~12,000 Hz
Sensitivity (at 1,000Hz): -53±3 dB* (2.23mV) 0dB=1V /μbar
Directional Pattern: Half-Cardioid
Impedance: 100Ω Max. SPL for 1% THD: 125 dB
Signal-To-Noise Ratio: 67dB
Power Supply: 12-52 VDC phantom power
Current Consumption: ≤6mA
Output Connector: 3P Mini XLR-M type(power module)
Net Weight: 88 grams
Low Frequency Roll-off: 80Hz , 120Hz
Switches:

Push control: on/off
Function selection: push on/off, momentary on/off
Low cut : low frequency roll-off

Delivery

Order weight is calculated on whichever of the dead (actual) or volumetric weight is the greatest. As of 10/9/21 capped $8.80 to $16.50 for up to 20kg to most areas. For orders under $50 options are Standard Postage $8.80 or Express Shipping for $16.50. Orders over $1,000 ship for free. Express Shipping covers one delivery attempt so please provide an address where someone is available to sign for courier delivery between 9am and 5pm weekdays. You can instruct us to ask the courier to leave your parcel unattended in a safe place, although please be aware that if anything happens to the parcel, neither us nor the courier company can be held responsible. Work addresses are a great delivery option. If using a work address please include the business' name.

* for some larger items does not apply to Australian remote island locations, some mainland remote locations (outside Darwin NT and Perth WA metro areas) or outside Australia. If unsure if you are entitled to capped shipping it is best to contact us prior to placing order.

Price Match

Should you find an identical stocked item for a lower price from a competitor, we will happily match the price, subject to certain terms and conditions. See our Price Match Policy

Category: Condenser Microphones, Installation Microphones, JTS
