Chauvet DJ SlimBank H18 ILS LED Wash Light

Chauvet DJ

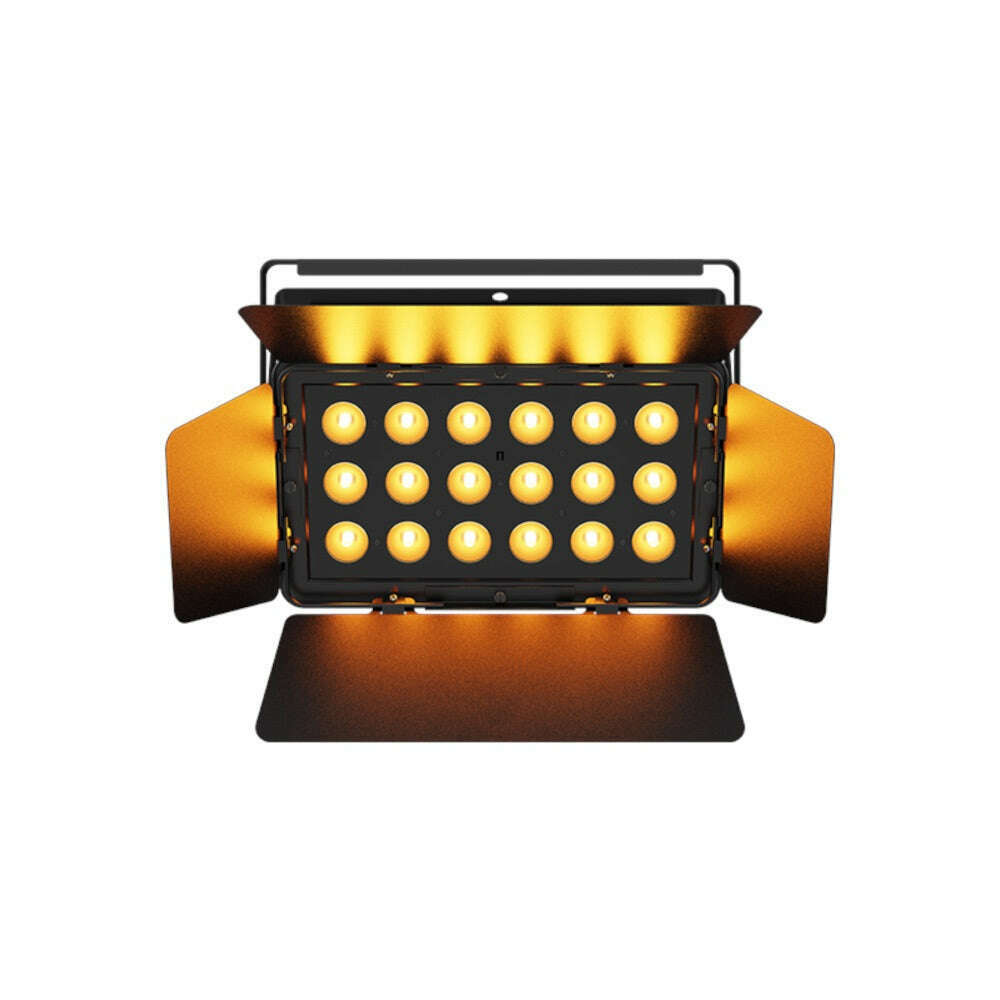

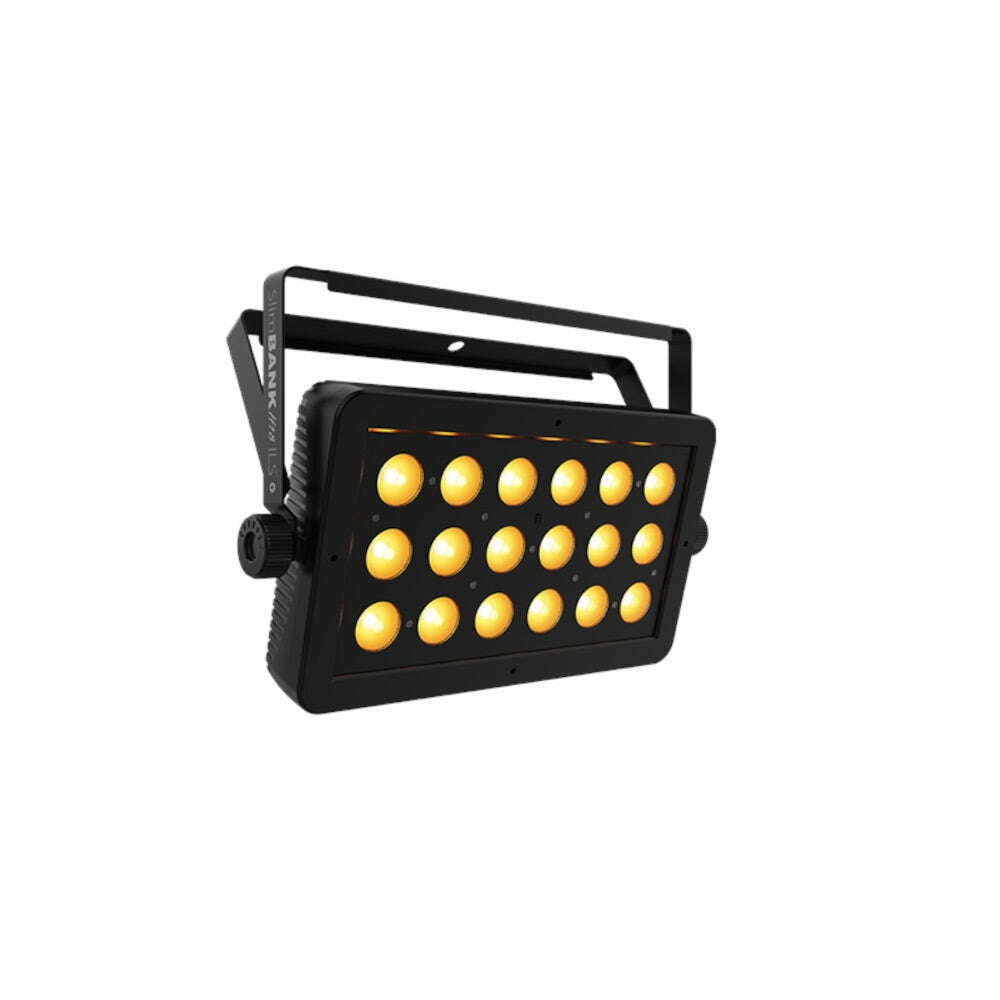

The Chauvet SlimBANK H18 ILS is a versatile hex-color (RGBAW+UV) LED wash light with brilliant eye candy effects. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Built-in dimming curves achieve smooth LED fading while built-in auto programs with sectional control generate complex looks in no time. Its radiant cooling and fan-free design make this fixture ideal for sound-sensitive environments.

Warranty: 2 Years

  • Versatile hex-color LED wash light with brilliant eye candy effects
  • ILS compatibility for use in the ILS ecosystem
  • Generate complex looks easily with built-in, eye-catching auto programs with sectional control
  • Adjustable barn doors help direct and focus the light
  • Control options include IRC-6 remote, Master/Slave, DMX, or ILS
  • Achieve smooth LED fading with built-in dimming curves
  • Ideal for sound-sensitive environments due to the radiant cooling design and no fan
  • Save time running extension cords by power linking multiple units


DMX Channels: 4, 6, 12 or 22
DMX Connectors: 3-pin XLR
Light Source: 18 LEDs (hex colour RGBAW+UV) 6.2 W, (1.6 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 27°
Field Angle: 43°
Illuminance: 3,111 lux @ 2 m
Power Linking: 14 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 67 W, .5 A @ 230 V, 50 Hz
Bracket Mounting Hole: 13 mm
Weight: 2.7 kg
Size: 208 x 355 x 55 mm
Optional Controllers: IRC6, ILS Command
Approvals: CE, RoHS, UKCA
