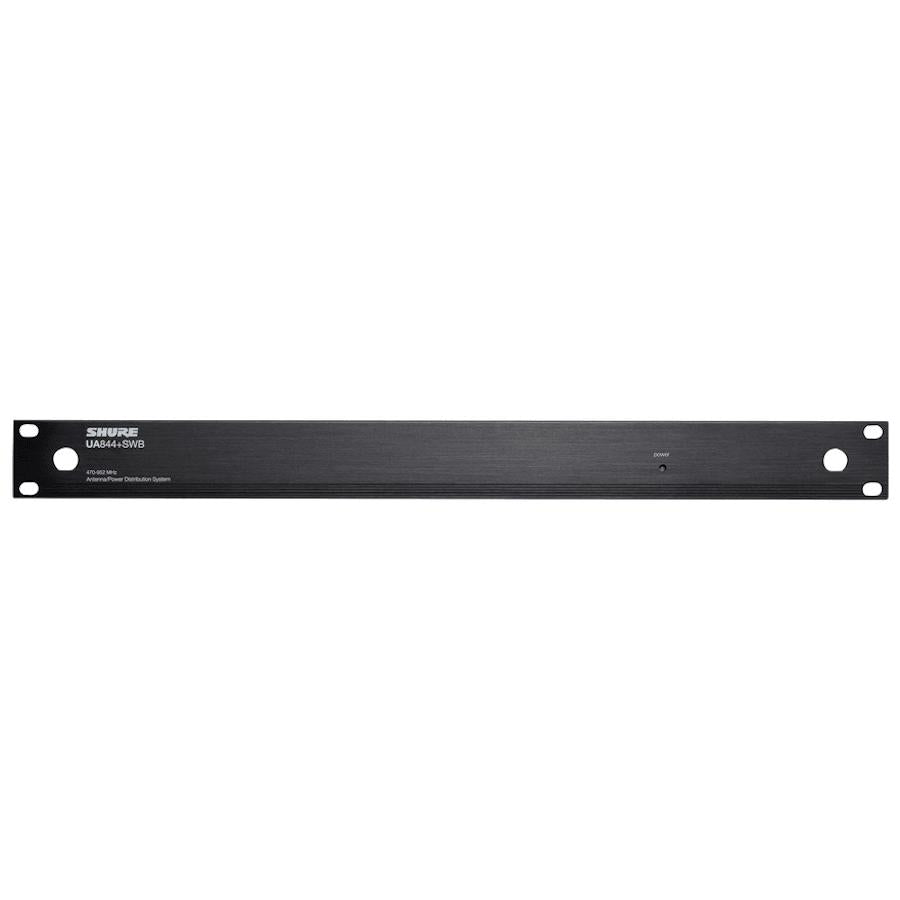

Shure UA844+SWB Wideband UHF 470-952MHz Antenna & Power Distribution System
SHR-UA844+SWB
$1,435.00
The Shure Model UA844+SWB is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+SWB system can support up to five wireless receivers. A maximum of five UA844+SWB systems may be used in a two-tiered configuration.
Wideband UHF (470-952 MHz) Five-Way Active Antenna Splitter and Power Distribution System, external power supply. For QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers.
Warranty: 2 Years
Features

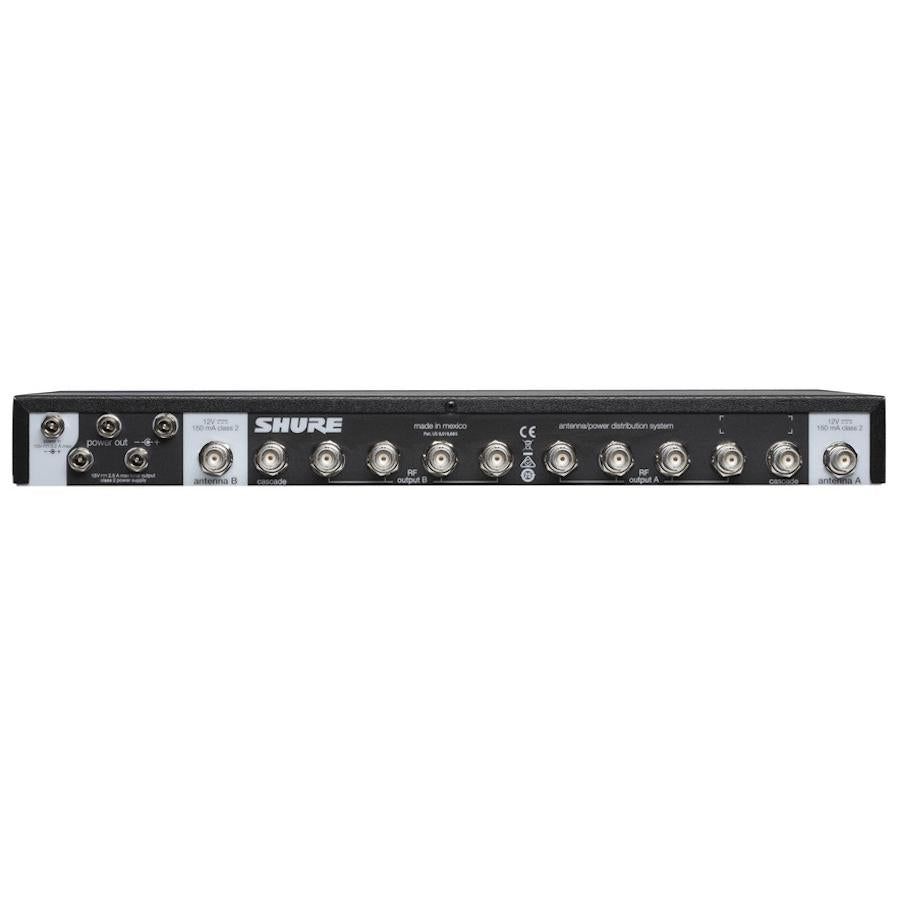

- Five-way RF signal output
- Support QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
- Front-mounting antenna hardware
- Rack-mounting hardware
- 4 DC power feeds and for receivers (15V, 2.5A max)
- DC outputs for antenna bias (12V, 300mA max)
UA844+SWB models include:
- 1 UA844+SWB Antenna/Power Distribution System
- 1 PS60 power supply
- 4 Locking DC power cables (for ULX4D, ULXP4)
- 4 Non-locking DC power cables (for QLXD4, SLX4, BLX4R)
- Ten 22 in. BNC cables
- Two 6 ft. BNC cables
- 2 Bulkhead adaptors
- 1 Rack mount Hardware kit
- 1 Literature Package
To download a User Guide from the Shure site please click here.
