The new MILAN series has been completely re-engineered from the ground up. It combines amazing performance with ultimate convenience for musicians, DJs and AV applications in a range of stylish portable powered loudspeakers with an unmistakable sound signature enhanced by the industry's most sophisticated KLARK TEKNIK DSP.
The Milan M10 is a portable 10” two-way powered loudspeaker featuring two independent input channels, mic and line inputs, two band EQ, intelligent limiting, and a Mix Out function for connection to additional Milan loudspeakers for easy system expansion.
The Class-D amplifier is a true 2-channel unit with an integrated electronic crossover, allowing the HF and LF drivers to be powered separately without one being able to influence the sound of the other. Total output power is 600 watts peak, providing plenty of headroom to maintain good dynamic range so that transient signals are delivered effortlessly. The lightweight switch-mode power supply coupled with industry leading Klark Teknik digital signal processing, providing dynamic equalisation and sophisticated limiting functions to ensure optimum performance and long term reliability.

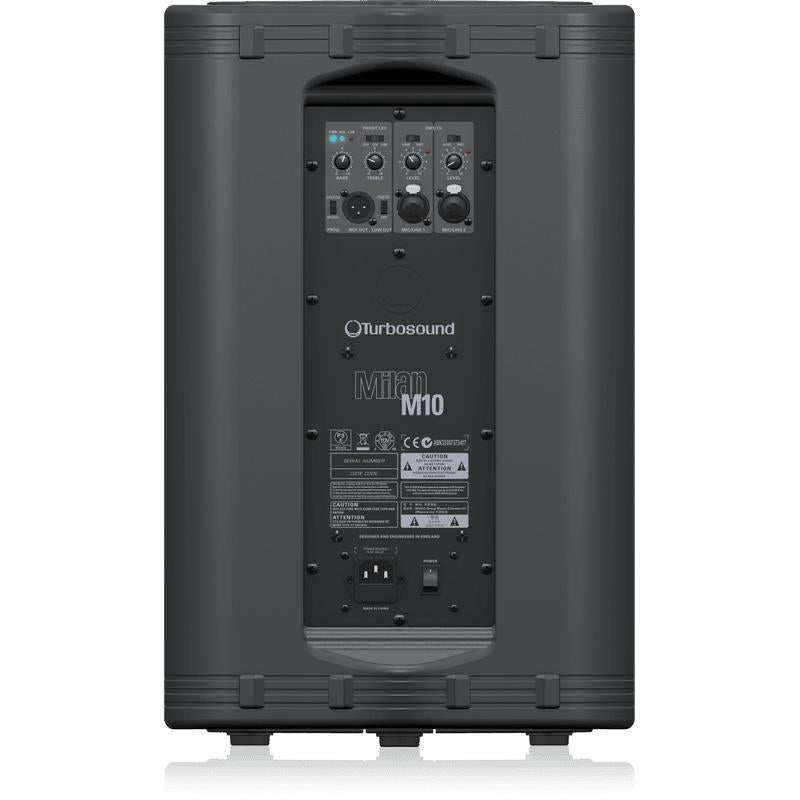

The two discrete input channels are each equipped with balanced, combination jack/XLR connectors and a level control, catering for a range of music sources from low impedance microphones, acoustic guitars and keyboards to mp3 players and mixing consoles, selectable via a mic/line slide switch.
Common to both channels are bass and treble controls with ±6 dB of cut or boost to allow the loudspeaker to be equalised to the venue. In addition, a low cut filter is provided at 100 Hz to shelve the low frequency response when used on the floor as a wedge monitor, or to ensure correct integration with subwoofers. A speech/music switch optimises the loudspeaker’s frequency response either for predominantly vocal material or for music programme. A Mix Out function sends the mix of both input channels post-EQ to additional Milan loudspeakers on a balanced male XLR for easy system expansion.

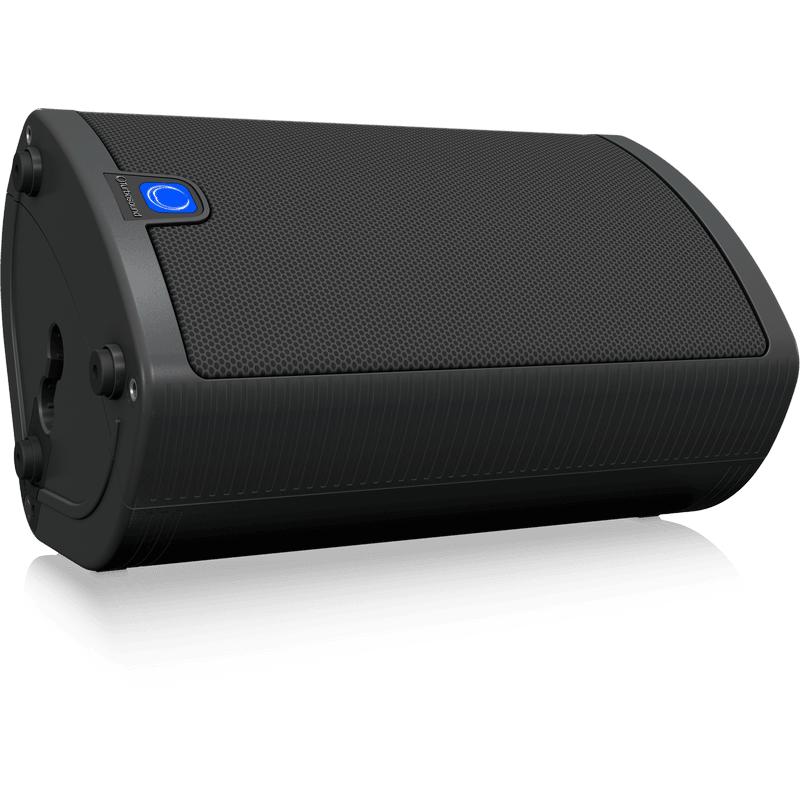

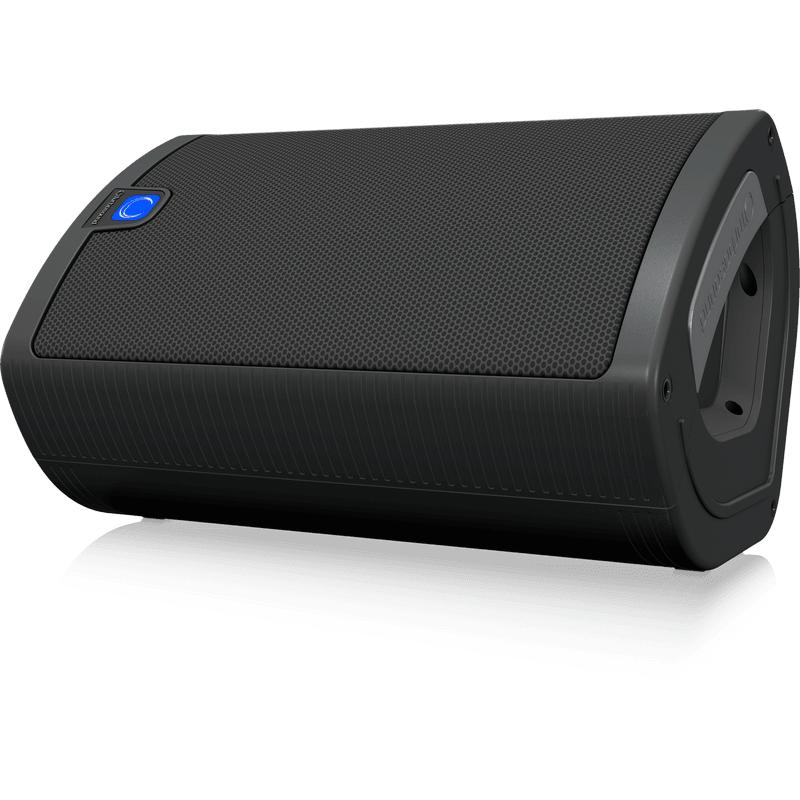

The trapezoidal enclosure is fabricated from high density polypropylene, and is extensively ribbed externally and internally to eliminate resonances and also to provide an attractive and durable cabinet finish. The symmetrical 43° side angles allow the loudspeaker to be conveniently used as a floor monitor. A recessed grab handle on the top is designed for easy lifting and carrying, while the dual angle pole mount socket allows the loudspeaker to be mounted on straight poles or speaker stands either vertically, or raised higher and angled down to optimise audience coverage. A total of six M10 rigging points are provided on the top and bottom of the cabinet to enable vertical or horizontal suspension in permanent installations using M10 shoulder eyebolts.
Mains power is connected via a non-locking IEC with integrated fuseholder. The illuminated front badge can operate in one of three possible modes: permanently on; permanently off; or to indicate the action of limiting.
Warranty: 10 Years
Dimensions (H x W x D): 522 x 329 x 294 mm (20.6 x 12.9 x 11.6")
Net Weight: 13.3 kg (29.3 lbs)
Components: 1 x 10" (254 mm) LF driver, 1 x 1" (25 mm) HF compression driver
Frequency Response: 55 Hz - 18 kHz ±3 dB
Dispersion: 90 °H x 60 °V @ -6 dB points
Calculated Max SPL: 126 dB peak
Construction: Injection-moulded polypropylene enclosure. Recessed carrying handle. Integral dual-angle pole mount socket
Grille: Powder coated galvanised perforated steel mesh with foam backing
Mic/Line input: combo jack/female XLR wired pin 2 hot
Mix out: male XLR wired pin 2 hot
IEC mains connector with integrated fuseholder
Rigging: (6) M10 threaded internal rigging points
