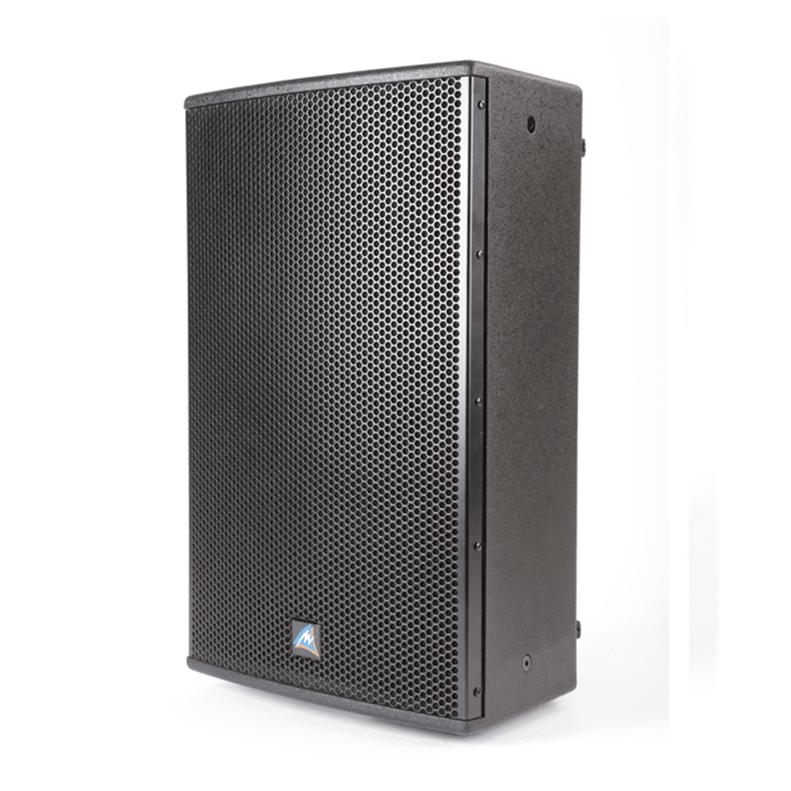

Australian Monitor XDS12 12 inch Passive Speaker (each)
AM-XDS12
$865.00
The Australian Monitor XDS Series represents the flagship level of their loudspeaker range, engineered for accuracy, reliability and musical detail in demanding sound reinforcement environments. Suitable for both front‑of‑house and foldback use, the XDS range is widely respected for its natural voicing and consistent performance across live music, corporate audio and general PA applications.
The XDS12 delivers serious output and presence, making it an excellent choice for larger school halls, contemporary churches, rehearsal spaces and full band systems. When paired with an XDS subwoofer in a sub/sat configuration, it produces a powerful, full‑range solution capable of handling high‑energy musical applications. Its clarity and versatility also make it a popular option for stage foldback.
Backed by a 5‑year Australian Monitor warranty, the XDS12 provides dependable performance and exceptional value for professional, portable and installed sound systems.
Wall Mounting Options Available
We can also supply a full range of wall‑mount and U‑bracket options to suit all XDS top speakers. If you need mounting hardware for an install, just contact us and we’ll recommend the right brackets for your setup.
Warranty: 5 Years
- 12” woofer and 1.7” compression driver
- RMS power is 300 Watts / Program power 600 Watts
- M10 fly points
- M10 rear bracket wall mount point
- 35mm stand boot
- Connection via a pair of 4 pole Speakon or screw terminal block
- Recessed carry handle
- U Bracket available
- Rubber feet fitted
- Can be used as foldback wedge
Form Factor: Box
Max Continuous Power: 300W
Tappings: 8 Ohm
Max Program Power: 600W
IP Rating: No
Max Peak Power: 1200W
EASE Model: No
SPL 1W/1m: 96dB
Powered: Passive
Max SPL RMS: 121dB
Driver Diameter: 12" & 1.7"
Max SPL Peak: 127dB
Colour: Black
Frequency Response (-3dB): 50Hz - 18kHz
Warranty: 5 years
Dispersion: 80 x 50deg
Product Dimensions: (W x D x H) 396mm x 400mm x 620mm
Shipping Dimensions: (W x D x H) 480mm x 480mm x 720mm
Net Weight: 20 Kg
Cubic Shipping Weight: 41.47 Kg
