JTS 8011DB Handheld Wireless Microphone System
JP-8011DBKITHB4 (638-674MHz)
$609.00
- Description
- Features
- Specifications
- Delivery
- Xmas
- Price Match

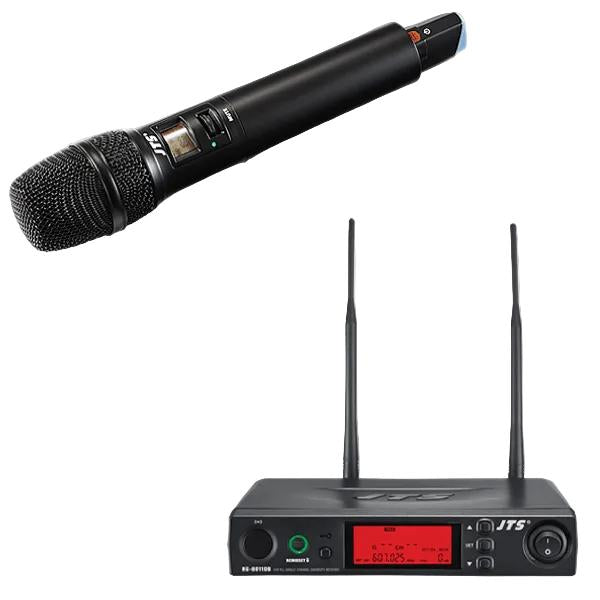

This system includes RU-8011DB receiver and RU-850LTH handheld transmitter.
This system is available in both the 638-674 MHz and the 520-556 MHz range. To check if these frequencies operates best in your area please use the ACMA Channel Finder at http://channelfinder.acma.gov.au/.
JTS manufacture this 8011DB and the 8011B system. The main two differences are that with this more expensive 8011DB system the transmitter has an LCD display screen, and the receiver has BNC-connected antennas so they can use external antenna systems.
Based on the successful US-8001D systems, the RU-8011DB is designed with JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.
The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. It is built with detachable BNC antenna so can be used with boosters and distributors. To be environment friendly an integrated charger is available on option (see Related Products below).
-
Single channel system
-
BNC-connected antennas (can use external antenna systems), antenna diversity
-
10/50mW transmitter power (selectable)
-
36MHz tuning range
-
6 groups, 22 channels per group
-
LCD display on transmitters
-
REMOSETU
-
Full LCD display on receiver
-
Dynamic handheld transmitter
-
Optional drop-in charger for transmitter batteries
| RU-8011DB |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| Frequency Setting | REMOSET U |
| Receiving Mode | Antenna Diversity |
| Bandwidth | 36MHz |
| S/N Ratio | >105dB(A) |
| T.H.D | <0.6%@1KHz |
| Sensitivity | -95dBm,S/N>80dB |
| Rejection Ratio | >80 dB |
| Frequency Response | 50Hz~16KHz±2dB |
| Antenna Type | BNC Socket |
| Antenna Booster Power | DC12~15V/100mA |
| Display | LCD |
| Display Contents | Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume |
| Controls | Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF) |
| Audio Output Level | Ref/ ±22.5KHz Dev@1KHz Tone ψ6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC) |
| Audio Output Impedance | 600Ω |
| Squelch | Pilot Tone & Noise Mute |
| Output Connector | 1 independent balanced XLR and one Ø6.3mm unbalanced. |
| Power Supply | DC12~15V/300mA |
| Dimension (mm) | 212.3mm(W)* 38.3mm(H)* 144mm(D) |
| Notes | Acutal product specifications may vary depending on region |
| RU-850LTH |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960MHz |
| Frequency Setting | REMOSET U(Receive) |
| RF Outpus | Low / High |
| Stability | <±10KHz@Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Function | Mute, Auto Power Off, Sensitivity Adjust, Low Battery |
| Display | LCD+LED |
| Controls | Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock |
| Battery | UM3, AA x2 |
