EWI PMM-1601 Combo 240v Power/Neutrik XLR Signal Cable - 2.5, 5, 10, 15 & 20 Metre

EWI

EWI-PMMCS20M

We have these made to order so please allow up to 2 working weeks when ordering. Instead of the IEC connector at the equipment end, we can have them made up with either a POwercon or standard 240V socket.

Prices are:

2.5 metre @ $132
5 metre @ $145
10 metre @ $170
15 metre @ $200
20 metre @ $230

Here's a great idea for powered speakers or DMX lighting fixtures! Quality made in South Korea EWI Signal / Power cable assembled here in Australia as ready to go power/signal combination cables, with at one end a genuine Neutrik NC3FXX XLR 3-pole cable mount female socket & standard 240v male plug, and a Neutrik NC3MXX XLR 3-pole cable mount male plug & IEC standard 3-pole cable mount socket at the other end. A velcro cable tie is included. Once you get these you are sure to wonder how you ever got by without them.

Available in 2.5, 5, 10, 15 and 20 metre lengths. Limited number in stock and in most cases assembled to order, so if not in stock please allow up to 3 weeks in between order and delivery.

NB. 10 metre version pictured for display purposes

Warranty: 5 Years

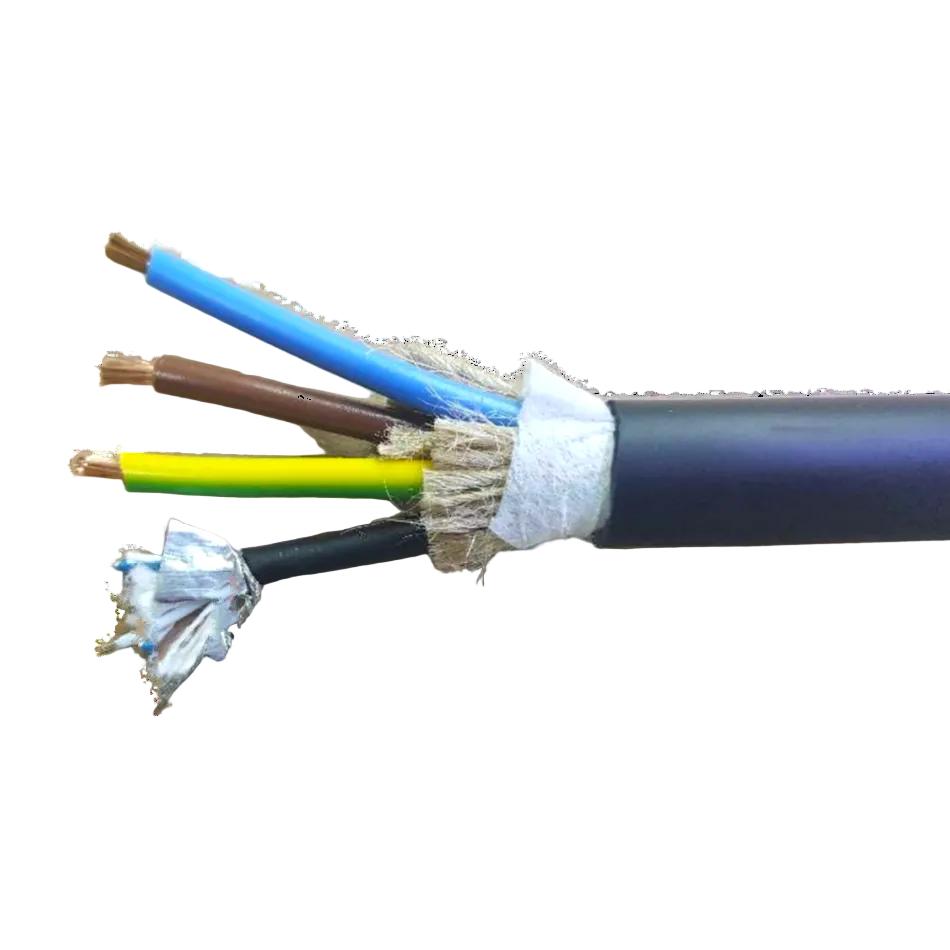

CONSTRUCTION

  • Power: 1.5mm2 X 3C ( 60/0.18A )
  • Insulation: PVC 3.0mm in dia - BROWN, BLUE, GREEN/YLW
  • DMX: 0.14mm2 X 2C ( 28/0.08TA, 26AWG ) Insulation: PE 0.95mm in dia - BLUE, WHITE Shield: 100% spiral, ( 48/0.12TA ) Individualjacket PVC 3.25mm in diameter
  • Diameter: 10.7mm
  • Weight: 15.3kg per 100 Metres

ELECTRICAL DATA

  • Capac. cond./cond. Per 1 m: 52pF
  • Capac. cond./shield. Per 1 m: 91pF
  • Cond. Resistance per 1km: < 85Ω
  • Insulat. Resistance per 1km: > 100 MΩ
  • Surge impedance: 110 Ω ± 5%
