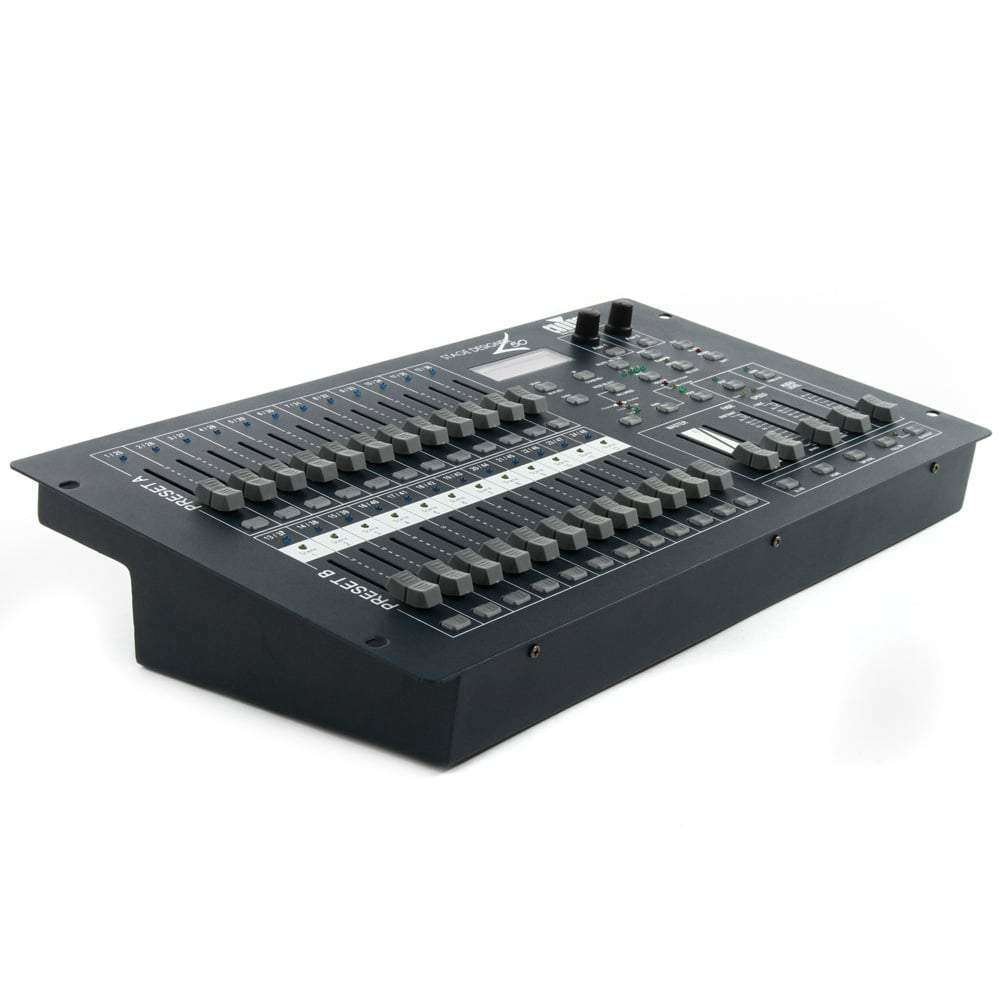

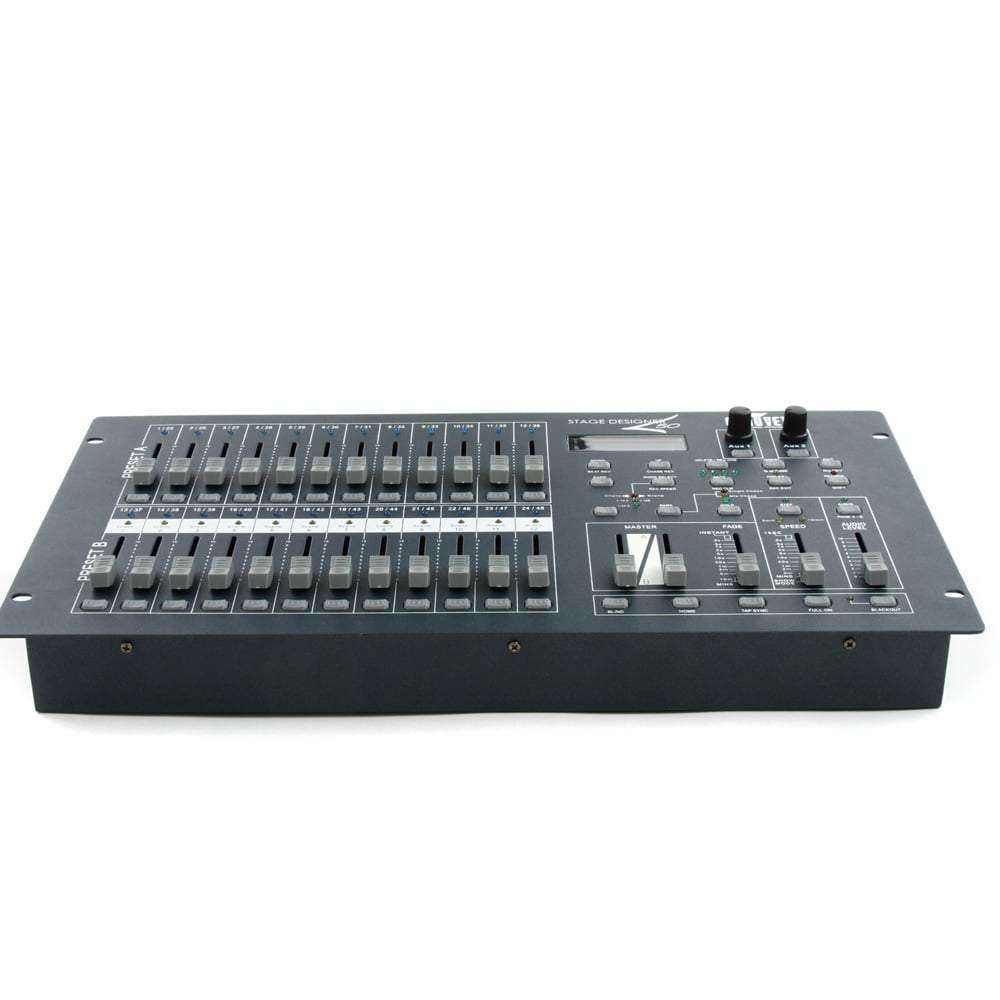

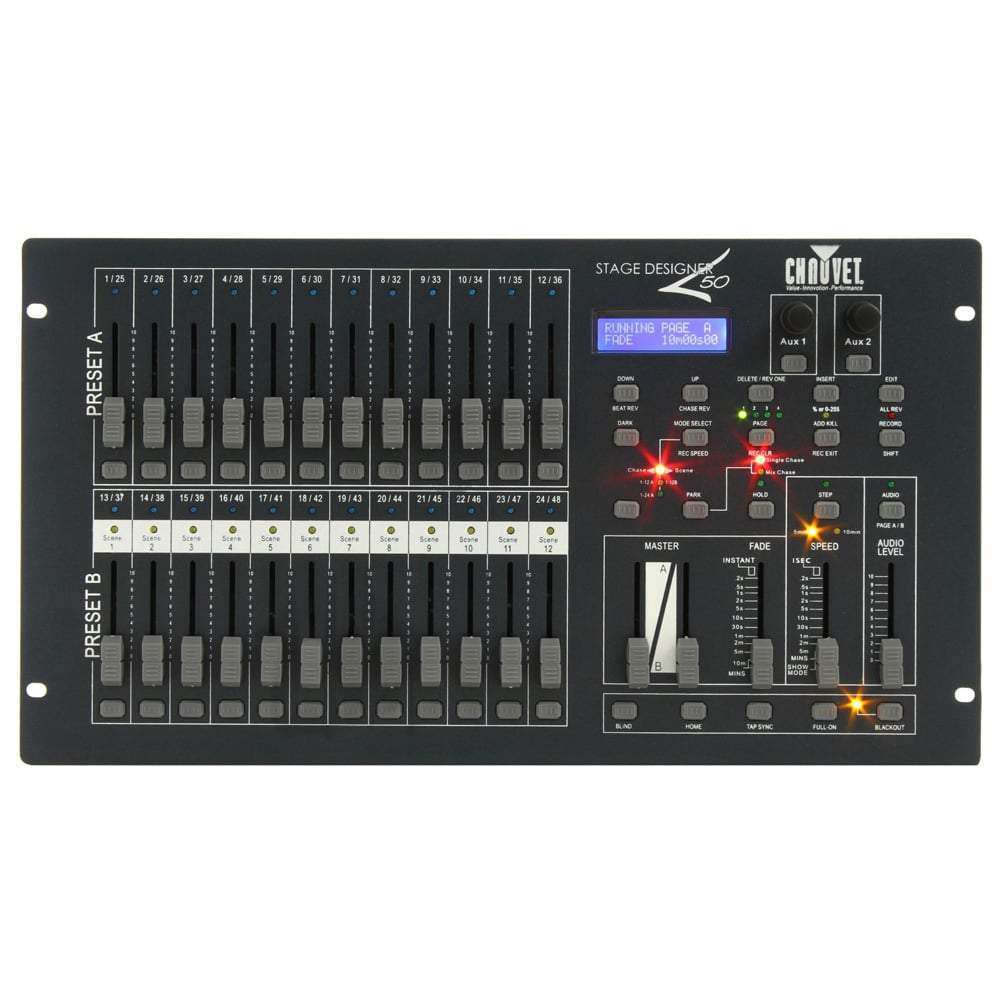

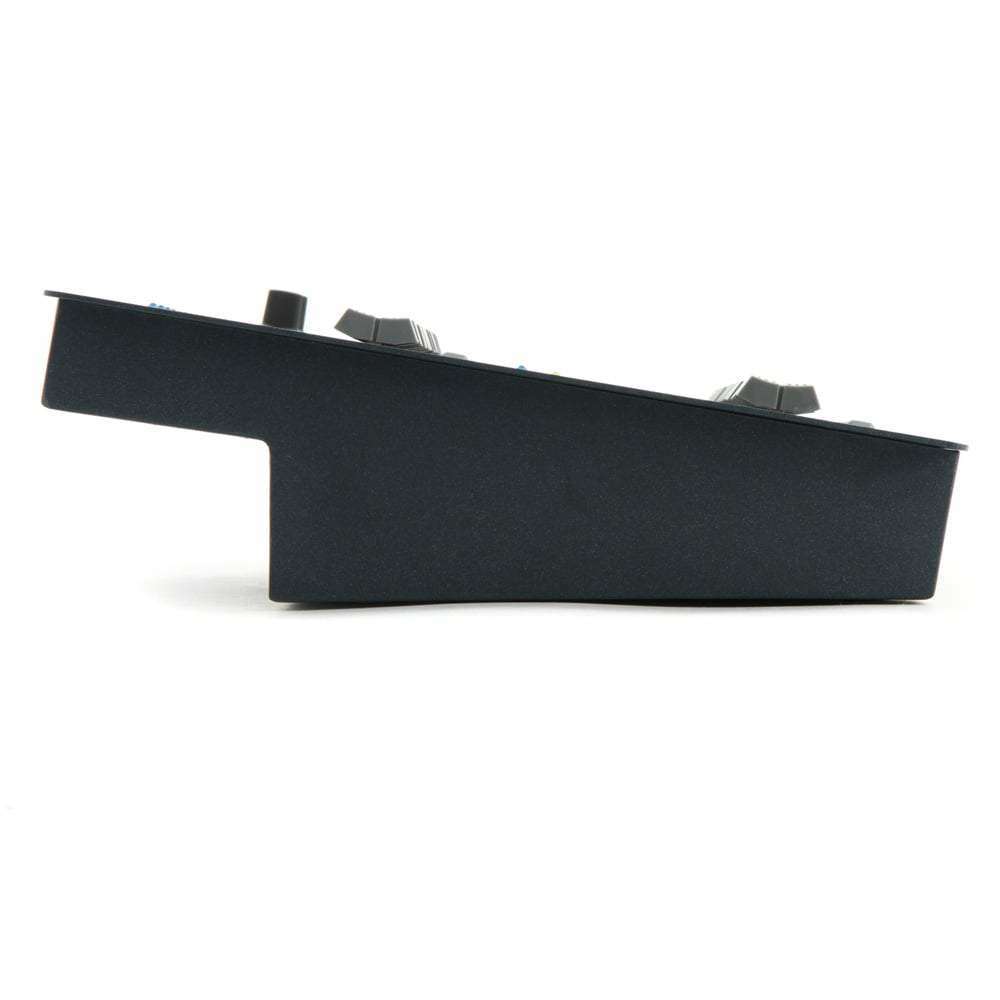

Chauvet DJ Stage Designer 50 48-Channel Theatre-style DMX Controller
CHA-STAGEDESIGNER50
$299.00
The Chauvet DJ Stage Designer™ 50 takes the size of a 24-channel dimming console and the functionality of a 48- channel console and combines the two into one powerful dimming unit. The Stage Designer™ 50 has up to 8 pages with 12 scenes each and 96 000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.
Warranty: 2 Years
- Theater-style DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
- Saves desk space by squeezing 48 channels into a 24-channel console
- Achieve smooth transitioning between live stage looks with built-in two-scene cross faders
- Increase programming and playback versatility with two programmable auxiliaries
- Simplify programming by using DMX channel patching to reassign channels
- Increase flexibility with built-in MIDI support for remote dimming and scene triggering
- Coordinate your light shows to music using the direct audio input connector or built-in microphone
- Ability to stack scenes for simultaneous or sequential playback
- DMX Channels: 48

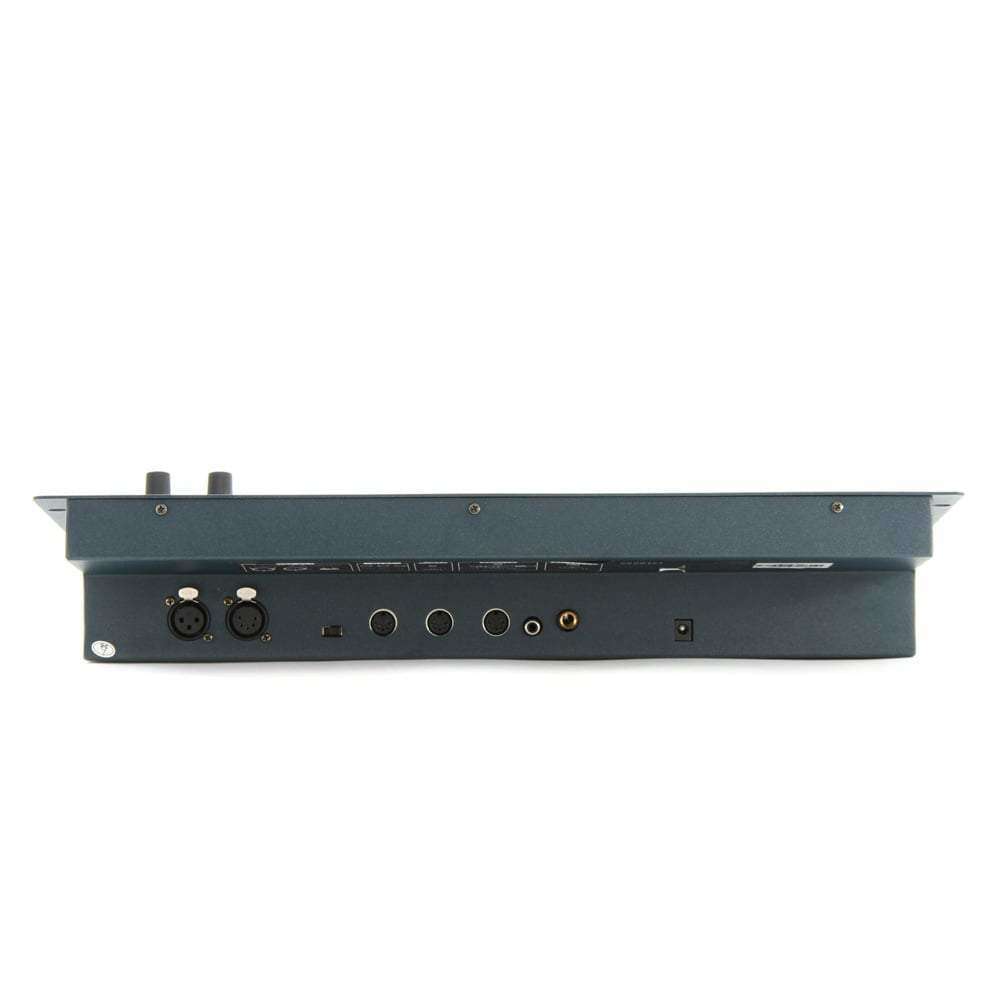

- DMX Connectors: 3- and 5-pin
- Rackmount: 6U
- Input Voltage: 12VDC 500mA (external power supply: 100 - 240VAC 50/60Hz)
- Weight: 9.9lbs (4.5kg)
- Size: 19 x 10.5 x 3.5in (483 x 267 x 89mm)
- Approvals: CE
Specifications subject to change without notice.
