The Advantages and Disadvantages Of 100v Line Over Low Impedance In Commercial Public Address System Installations


by Cannon Blogger July 26, 2024

When considering the installation of a commercial public address system, it is important to weigh both the benefits and potential drawbacks of the two primary types of PA systems: the 100-volt line and the low-impedance system. Here we shall dive into the characteristics of each system, particularly focusing on the 100-volt line amplification and speaker configuration. Understanding these aspects will help you to make an informed decision as to which type of PA system will best suit your needs.

Why Use a 100-Volt Line Amplifier and Speakers?

The use of 100-volt line amplifier systems over low-impedance (8 or 4 ohms etc) has become increasingly popular in commercial settings due to several inherent advantages. Understanding why one would choose this system is crucial for making an informed decision when purchasing and installing a commercial public address system.

Australian Monitor MPH5300 30 Watt IP66 Rated Horn Speaker
The Australian Monitor MPH5300 30 Watt IP66 Rated Horn Speaker will operate in extreme temperatures and weather environments.

High Efficiency for Long Cable Runs

For commercial venues that cover a large area, the key to an effective PA system lies in its ability to transmit sound efficiently over long distances. One of the most valuable benefits of 100-volt line systems is the minimisation of power loss during transmission. Let’s delve deeper into this attribute:

  • Less Power Lost: When the audio signals travel through the extensive wiring of a large venue, standard speaker systems may experience significant power loss and deterioration in sound quality. The 100-volt line system negates this with its higher voltage setup, ensuring the audio signal remains robust over long cable runs. This higher voltage can then be dialled down through transformers at each speaker location to the requisite volume levels.
  • Improved Sound Quality: Maintaining the integrity of the audio signal means that announcements or music broadcast through the 100-volt line system remain clear and intelligible, even at the furthest speaker from the source. With the use of multiple speakers, sound can be evenly distributed at lower levels.
  • Suitable for Large Installations: 100-volt line systems are ideal for large commercial spaces such as shopping centres, airports, and sports stadiums, where cable runs can be hundreds of meters long without compromising the audio output.

In conclusion, the 100-volt line system’s superior handling of long-distance sound transmission makes it an excellent choice for sprawling establishments looking for clear and reliable audio coverage.

Cost-Effective Cabling Solutions

The question of budget is ever-present in commercial undertakings. The choice of a 100-volt line amplifier can have far-reaching impacts on the cost of installation and cabling. Exploring this benefit in detail:

  • Thinner Cables: The system permits using narrower gauge cables which are substantially cheaper than the thicker cables required for low-impedance systems.
  • Reduced Installation Costs: As thinner cables are also lighter, they are normally cheaper, and easier to handle and install, which may lead to lower labour costs.
  • Less Complexity: With simpler cabling requirements, the system becomes more straightforward to plan, simpler to install and can reduce the likelihood of errors during installation.



Power Dynamics 802.703 79x0.2mm 2-Core Stranded Speaker Cable - 100 Metre Roll

Cost effective Power Dynamics 100m roll of standard 2-Core stranded speaker cable



Hence, from an economic perspective, the 100-volt line system provides a practical and budget-friendly option, particularly beneficial for businesses looking to minimize installation expenses.

Scalable and Versatile

  • Adaptability and scalability are paramount for businesses or venues that anticipate growth or changes in layout. 100-volt line systems shine in this area, offering:
  • Ease of Expansion: Adding more speakers to accommodate space enlargement or to cater to different listening zones is uncomplicated due to the parallel connection capability.
  • Customization: Due to its flexible nature, the system can be tailored to meet the specific acoustic requirements of various commercial environments, from serene libraries to bustling train stations.
  • This versatility ensures that the 100-volt line PA system remains a future-proof investment that can evolve alongside the needs of the business or venue.
  • Simplified Impedance Matching
  • One of the most technical aspects of installing a PA system is managing impedance – a factor that is made less daunting with a 100-volt line system:
  • Less Critical Calculations: Unlike low impedance systems which require precise calculations to avoid overloading the amplifier, the 100-volt system is notably more forgiving. As a general rule, you should allow 20% headroom. For example, if an amplifier or an amplifier channel is driving 4 ceiling speakers that are wired to the 20-watt tappings on each speaker the amplifier or channel should be capable of delivering 100 watts. For more complex calculations check out Geoff The Grey Geek's Distributed Speaker System Cable Loss Calculator.
  • Simpler Speaker Addition or Removal: Changes to the speaker setup do not necessitate complex recalculations, making adjustments quicker and easier for technicians.

Thus, the 100-volt line system offers a simpler, more fool-proof option.



P.Audio PCS-8CFT 8 Inch Coaxial Ceiling Speaker

P. Audio PCS-8CFT ceiling speaker with multiple power taps at 6, 12.5 and 25 watts



Multiple Zones

Building on the 'Multiple Zones' feature, modern Commercial Public Address (PA) systems allow precise targeting of announcements and music across different areas within a facility. This zoning feature is invaluable for large-scale enterprises such as shopping centres, airports, and office complexes, where the need to convey messages to specific sections without disrupting the entire premises is essential. Zoning functionality can be managed in larger venues easily through state-of-the-art digital control panels or even remotely via software applications. In smaller venues, it can be achieved using any one of many available mixer/amplifiers that have as many as 6 inbuilt zones. Seamless integration with existing infrastructure and customisable settings further enhances the user experience, offering the flexibility to adapt to various scenarios and events. Whether it is to inform customers of ongoing promotions in a particular retail zone or communicating emergency alerts in designated areas only, the zoned approach ensures messages are effectively received by the intended audience, without unnecessary spillover.

Enhanced Safety Features

Safety should never be compromised, and the design of the 100-volt line systems incorporates additional protection measures:

Higher Voltage Tolerance: The lines are less prone to issues like short circuits, which can pose fire risks and equipment damage. Sturdier Infrastructure: With the capability to handle higher voltages, the cabling and components are generally more robust, offering a longer lifespan and fewer maintenance concerns.

In conclusion, the safety enhancements built into the 100-volt line systems add to their appeal for commercial applications, especially in environments where reliability and compliance with safety standards are paramount.

Advantages of Low Impedance Over 100-Volt Line Systems

In the world of commercial public address systems, the 100-volt line option is often favoured for its proficiency in handling voice and ambient music broadcasts. This is attributed to its somewhat restricted frequency range when compared to its low-impedance counterparts. Despite this constraint, the 100-volt line excels in applications where clear speech and gentle background music are essential. Nonetheless, it's important to note that when it comes to louder, more powerful audio or high-fidelity music requirements, the 100-volt line might not be the most suitable choice due to its limited frequency capacity.

In Conclusion

Whether you're addressing a bustling shopping centre or need to convey important messages in a vast office complex, the audio quality delivered by your PA system can make all the difference. 100-volt line and low-impedance PA systems offer different benefits and potential limitations, and understanding these is essential for any business looking to install or upgrade its audio system. The above points should have helped you to strike a balance between practicality, quality, and safety, ensuring that your chosen PA system elevates your space both audibly and operationally.

Feel free to Contact Us for assistance in designing a commercial public address system to suit your needs. If you are located within the Sydney or Wollongong metro area, we can even arrange for an efficient installation team to come and install your public address system.




Cannon Blogger
Cannon Blogger

Author




Also in News

Unlock Unmatched Efficiency: The Ultimate Guide to Power Conditioning Units for Reliable Energy Performance!
Unlock Unmatched Efficiency: The Ultimate Guide to Power Conditioning Units for Reliable Energy Performance!

by Cannon Blogger September 10, 2024

Read More

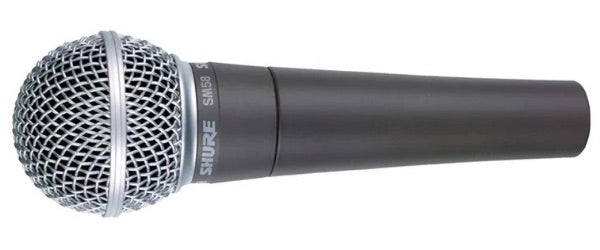

Unlock the Power of Your Voice: Perfecting Your Craft with the Legendary  Shure SM58 Microphone for Unforgettable Gigs!
