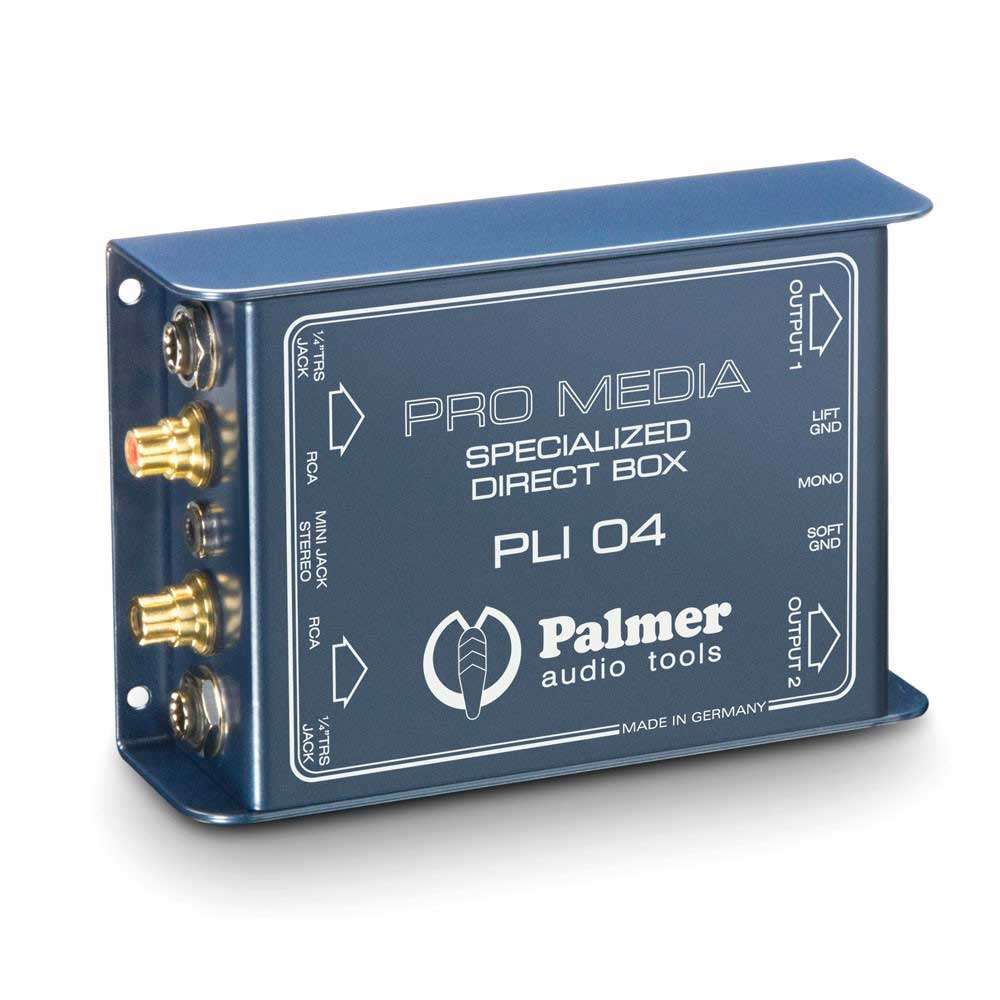

The Palmer PLI04 is a 2-Chanel DI Box that provides compatibility between computers and professional equipment. It’s a dedicated interface that feeds unbalanced stereo audio from a USB port to balanced mic inputs on mixing consoles.
The PLI04USB supports both 44.1, 48, and 96 kHz sample rates and provides high-quality D/A conversion with 24-bit resolution. The signal output is also transformer balanced on standard wiring male XLR connectors; with individual isolating switches for both left and right channels. What’s more, the PLI04 features a mono summing switch. Effectively doubling as a signal splitter capable of routing the mono signal to separate systems.
Finally, the PLI04 features a headphone output with level control. So you have a means of convenient monitoring and a ground lift.
Warranty: 5 Years
Product type: Line Isolators

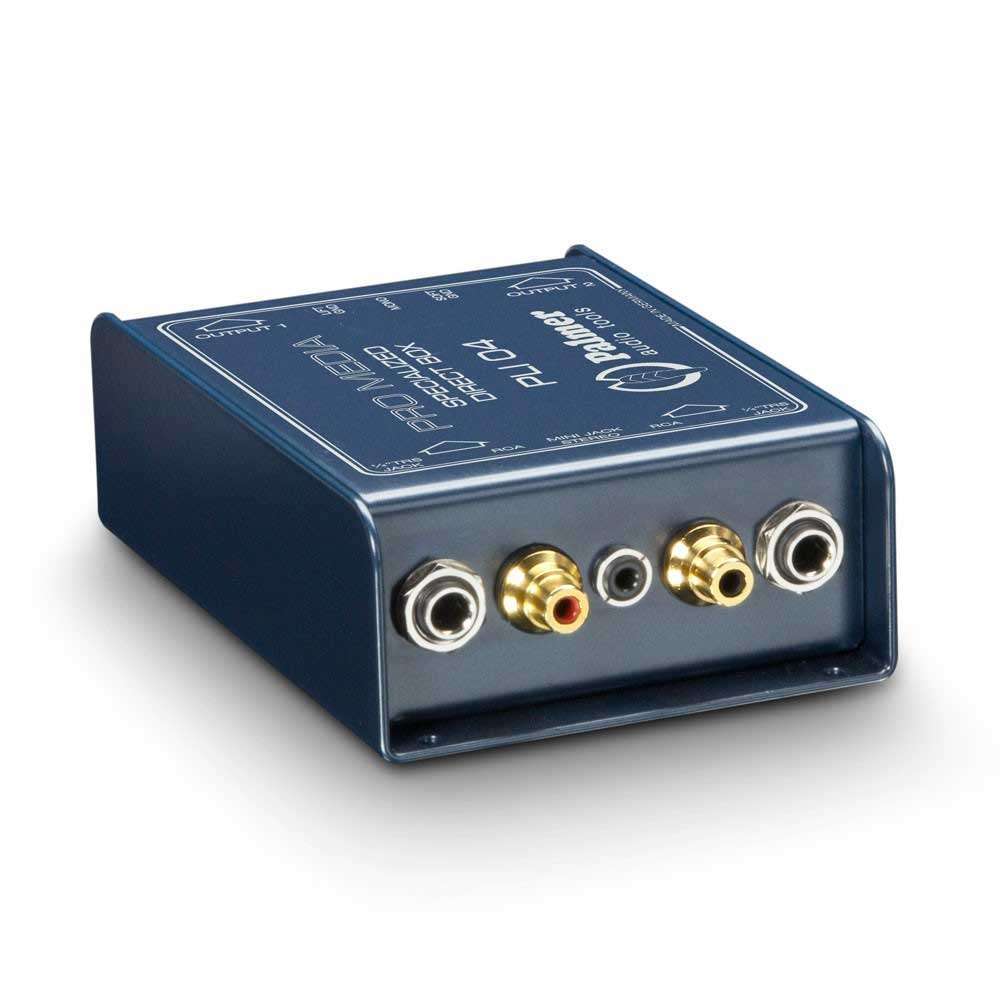

Input connectors: 3.5 mm TRS , 6.3 mm jack , RCA
Input type: unbalanced
Input impedance: (at 600 ohms load) 6 k Ohm(s)
Max. input level: + 6 dBu
Output connectors: XLR
Output type: balanced
Output impedance: 600 Ohm(s)
Max. output level: + 6 dBu
Transformer balanced: Yes
Ratio: 3.16 : 1
Frequency response: 20 – 20.000 Hz
Controls: ground lift , mono/stereo
Cabinet material: sheet steel
Cabinet surface: Powder coated
Width: 140 mm
Depth: 95 mm
Height: 35 mm
Weight: 0.699 kg
