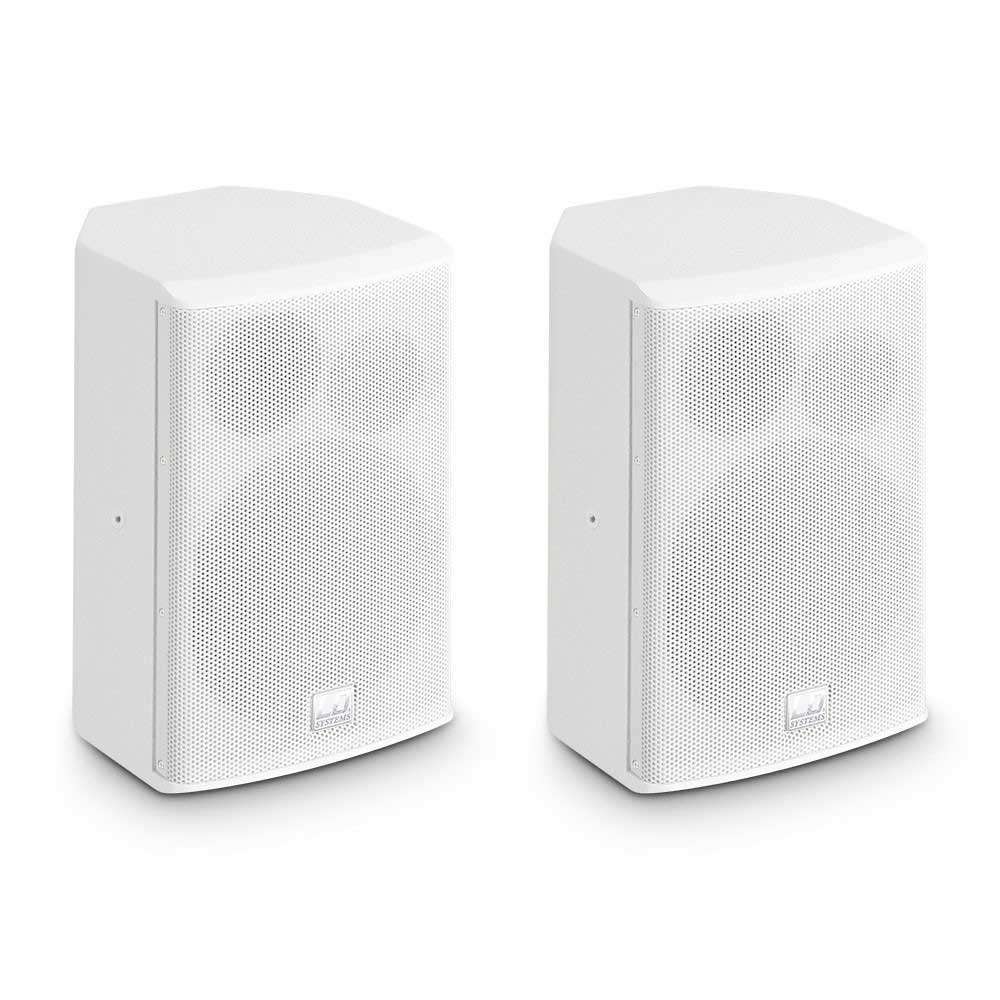

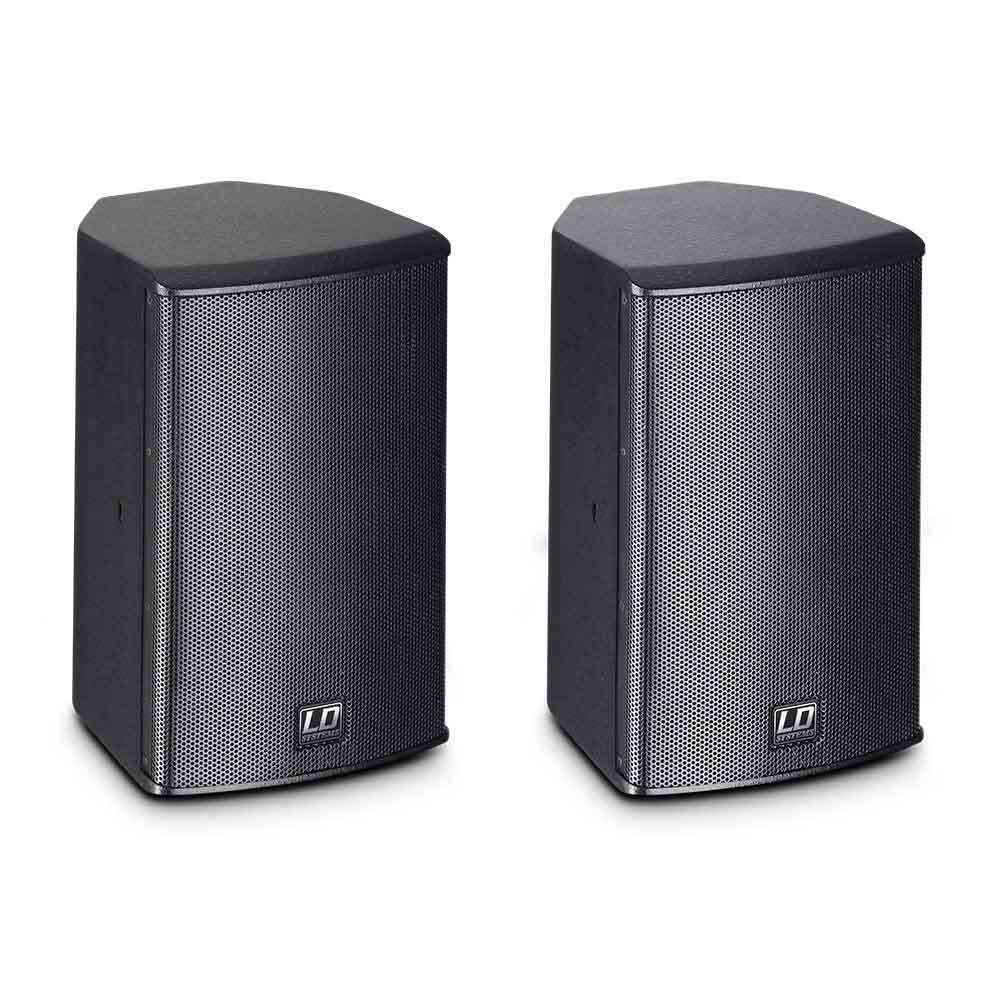

LD System SAT62G2 6 Inch Passive Install Speaker - Pair (Black or White)

LD Systems


The LD Systems SAT62G2 is an extremely compact, dependable 2-way speaker for numerous installation applications. It blends unobtrusively into practically any surroundings, e.g., in bars and restaurants, retail shops or even at home. The bass-reflex design with a 6.5″ custom woofer and a 1“ silk dome tweeter with wave guide provide for powerful and sonorous reproduction throughout a frequency range of 55 Hz – 20 kHz with a sound-level pressure of up to 108 dB. Thus the SAT62G2 is suitable for full-range operation and as a satellite in conjunction with a subwoofer from the LD installation series. It has an RMS power rating of 80 W. The impedance of 16 ohms permits parallel operation of eight SAT62G2 speakers on 2 ohms. The 12 mm MDF cabinet with a rugged textured coating is available in black and white. The included mounting bracket and M6 rigging points offer extensive possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.

Available in either black or white.

Warranty: 12 Months

  • Compact passive 2-way installation monitor pair
  • Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
  • 6.5″ custom-made woofers
  • 1″ high frequency driver with a 60° x 60° dispersion angle
  • 80W RMS power handling

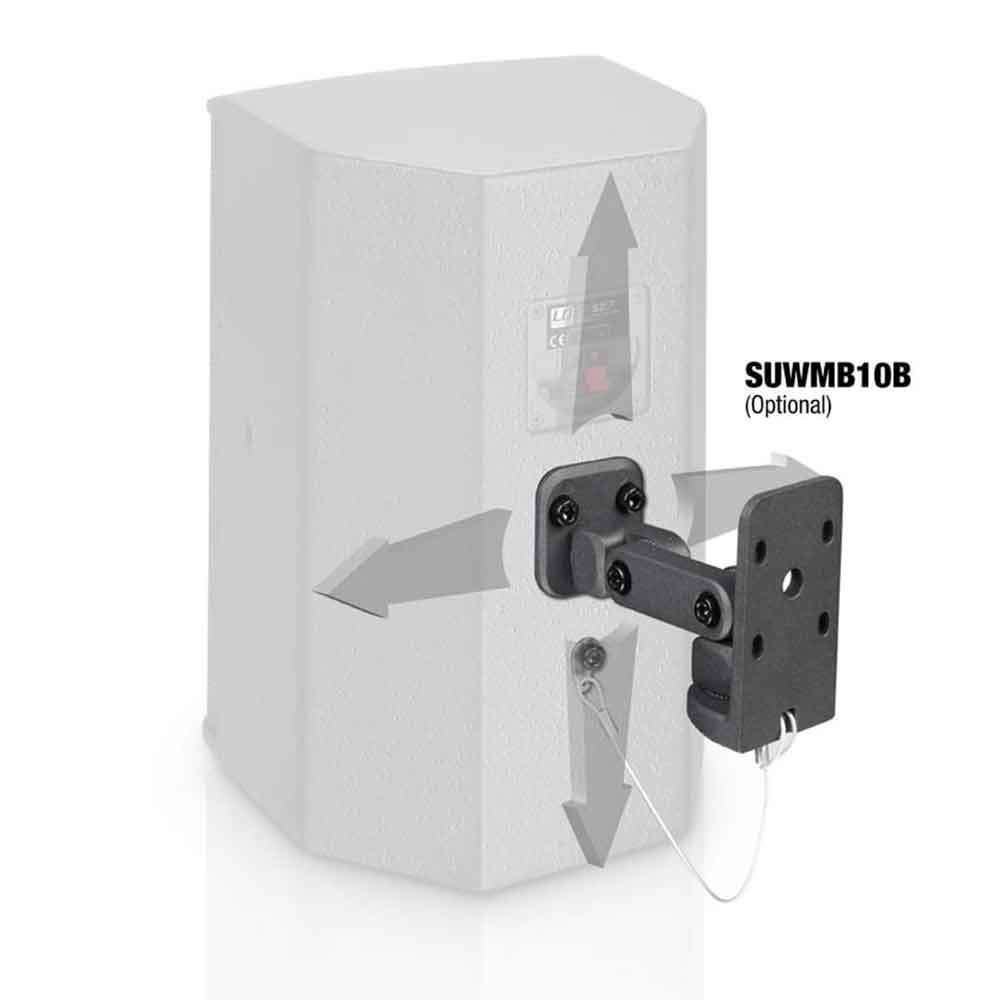

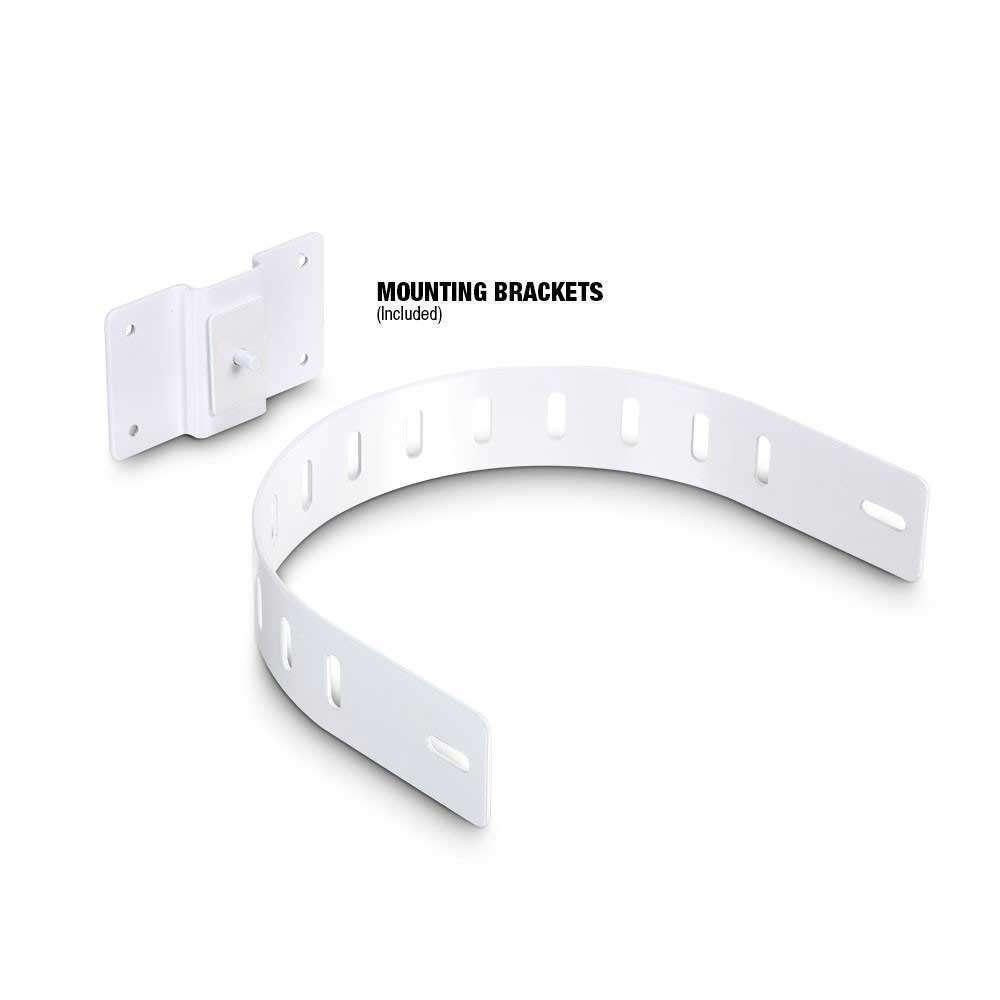

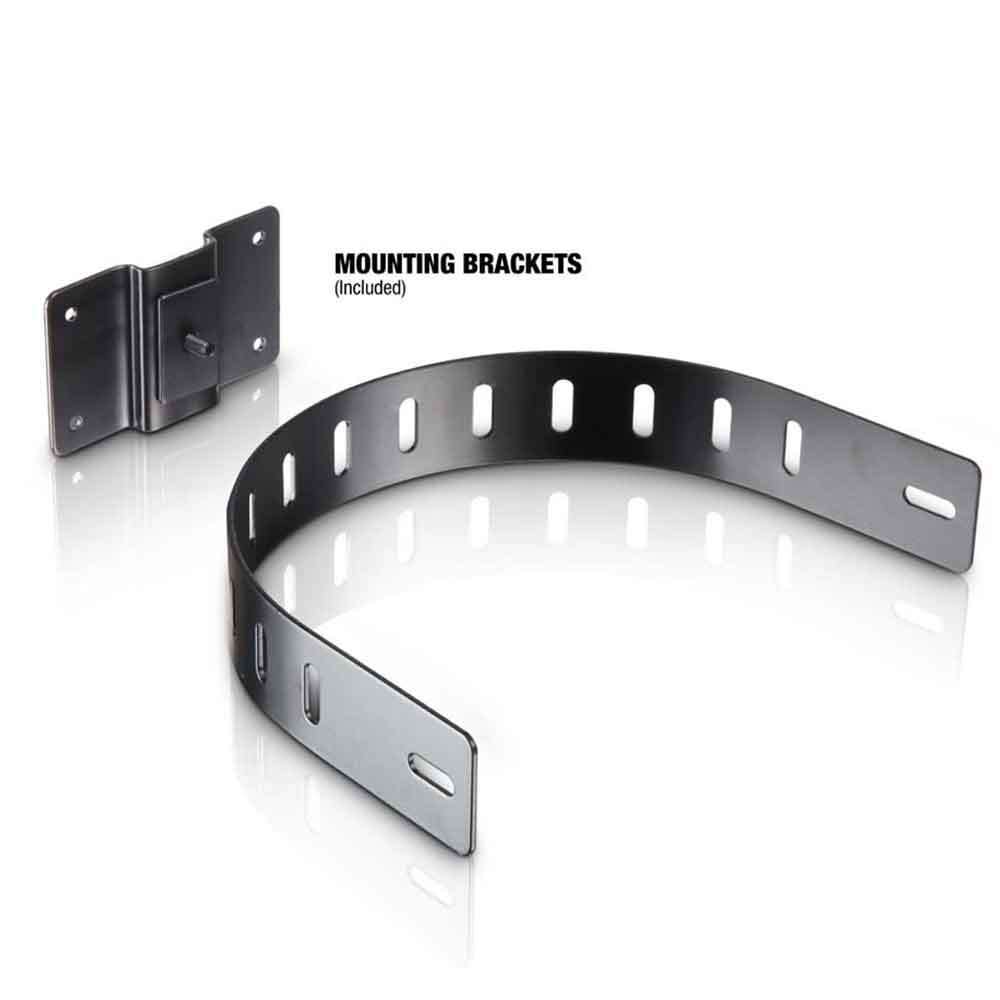

  • Mounting bracket and M6 fixing points for a wide variety of installation possibilities

Product Type: Installation Loudspeakers

Type: Wall-mounted Loudspeaker

Low/mid driver dimensions: 6.5 “

Woofer size: 165 mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

HF driver dimensions: 1 “

HF Driver Size: 25 mm

HF driver magnet: Ferrite

HF driver brand: Custom-made

Dispersion (H x V): 60 x 60 °

Load rating (RMS): 80 W

Frequency response: 55 – 20000 Hz

SPL (1W/1m): 89 dB

Max. SPL: 108 dB

Impedance: 16 Ohm(s)

Protection circuits: HF Driver

Loudspeaker inputs: 1

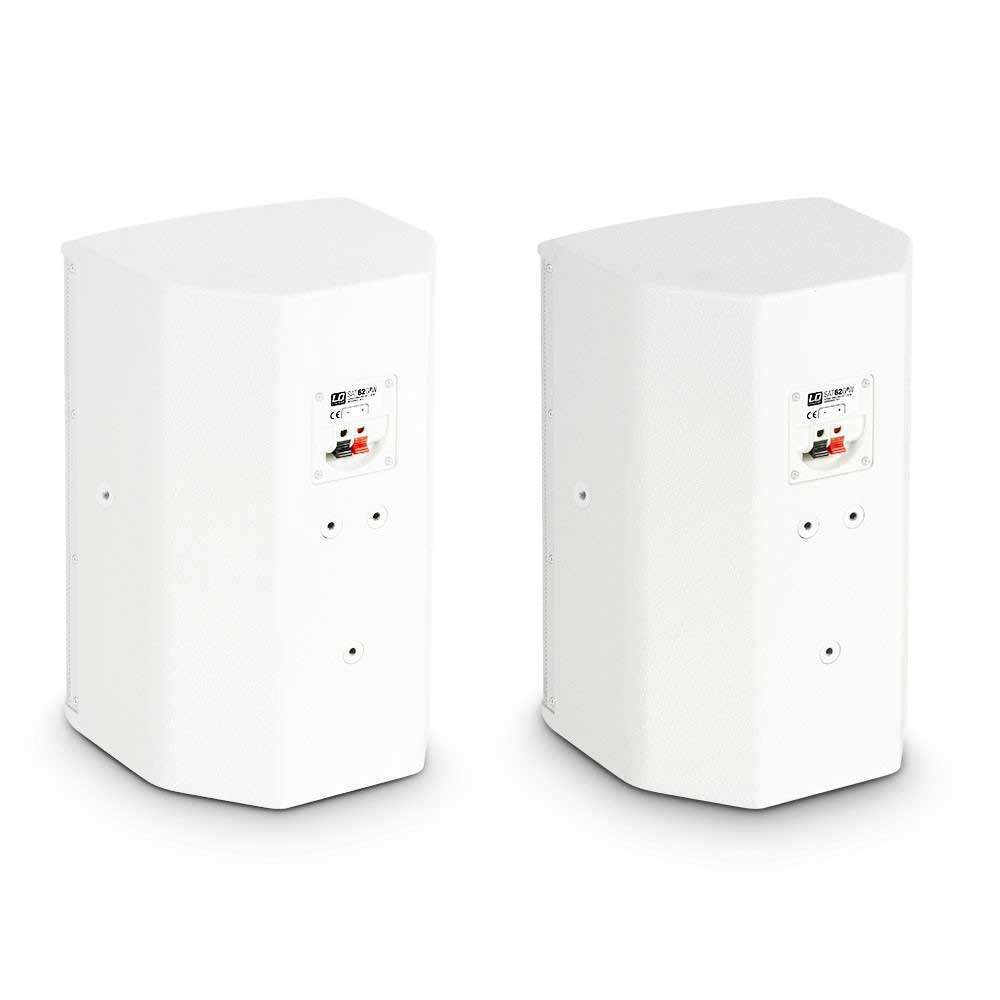

Speaker input connections: Clamp connector

Speakers per amplifier channel: (DSP44/45K) 8

Cabinet material: 12 mm MDF

Cabinet surface: texture paint

Cabinet colour: Black or White

Cabinet construction: Bass Reflex

Width: 200 mm

Height: 320 mm

Depth: 200 mm

Weight: 8.2 kg
